End of life. The Jetson TX2 series has reached end of life. For industrial designs, Jetson AGX Orin Industrial and Jetson Orin NX are the recommended successors.
Overview

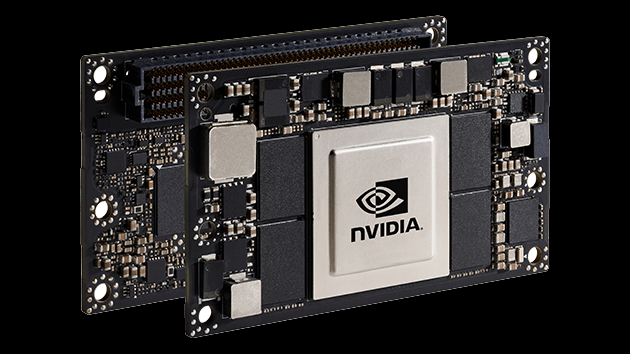

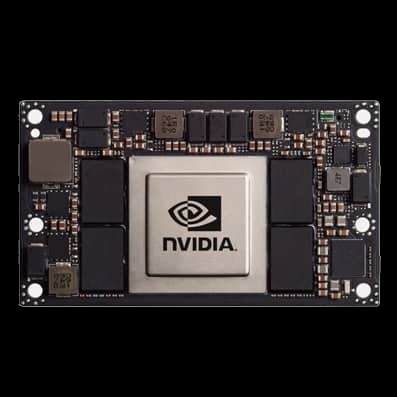

The NVIDIA Jetson TX2i 8GB was the ruggedized variant of Jetson TX2, built for factory automation, rail, mining and defense systems. It combined a 256-core NVIDIA Pascal GPU, a dual-core Denver 2 plus quad-core Cortex-A57 CPU and 8GB of LPDDR4 with ECC in a 400-pin module rated for -40 to +85 degrees Celsius.
The TX2 series is discontinued. Teams maintaining TX2i products can source remaining inventory on request, and we recommend Jetson Orin NX or AGX Orin Industrial for new industrial designs.
Key Features
- Industrial grade: -40 to +85 degrees Celsius, shock and vibration qualified, 10-year operating life
- ECC memory: 8GB 128-bit LPDDR4 with error correction
- 256-core Pascal GPU: 1.3 TFLOPS of FP16 compute
- Hex-core CPU: Dual-core Denver 2 and quad-core Arm Cortex-A57
- 10W to 20W: Configurable power modes
Technical Specifications
| Specification | Details |
|---|---|
| GPU | 256-core NVIDIA Pascal GPU |
| CPU | Dual-core Denver 2 + quad-core Arm Cortex-A57 |
| Memory | 8GB 128-bit LPDDR4 with ECC, 51.2 GB/s |
| Storage | 32GB eMMC 5.1 |
| Video Encode | 2x 4K30 (H.265) |
| Video Decode | 2x 4K30 (H.265) |
| Camera | 12 lanes MIPI CSI-2 |
| PCIe | 5 lanes PCIe Gen2 |
| Operating Temperature | -40 to +85 degrees Celsius |
| Power | 10W to 20W |

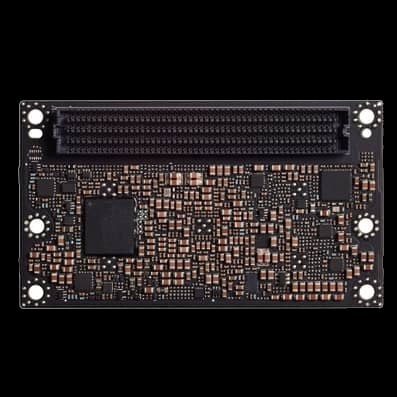

| Form Factor | 87 mm x 50 mm, 400-pin connector |
| Status | End of life |
Ideal Use Cases
- Reference for deployed TX2i industrial products
- Migration planning to Jetson Orin NX or AGX Orin Industrial
Why Choose This Product?
This page documents the discontinued TX2i module and its recommended successors for teams supporting industrial products built on it.
Looking for a current alternative? Talk to us and we will recommend the right Jetson platform for your migration.
