End of life. The Jetson TX2 series has reached end of life. Jetson Orin Nano and Jetson Orin NX are the recommended successors for new designs.
Overview

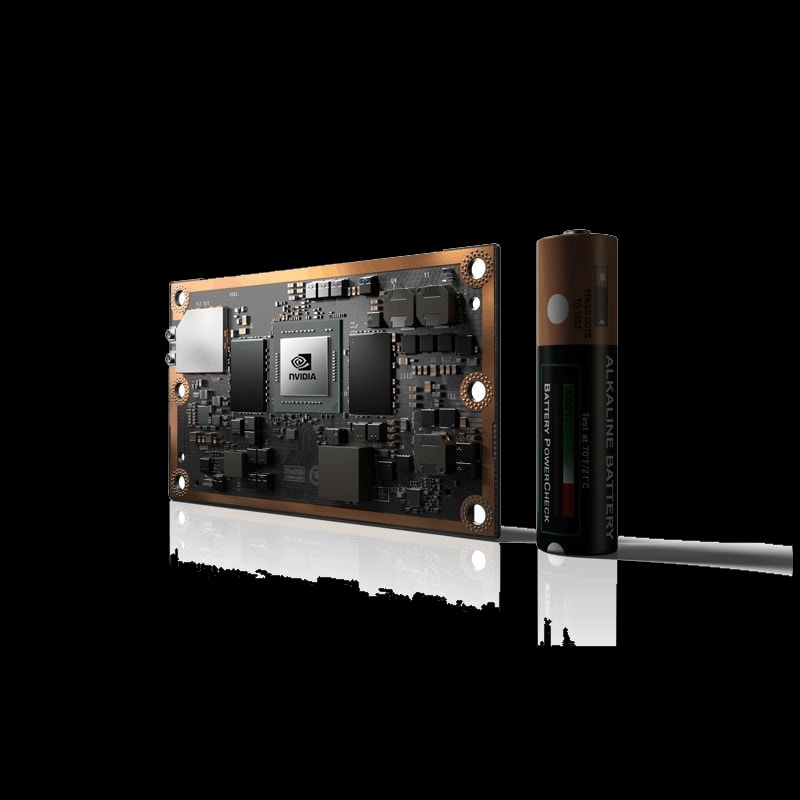

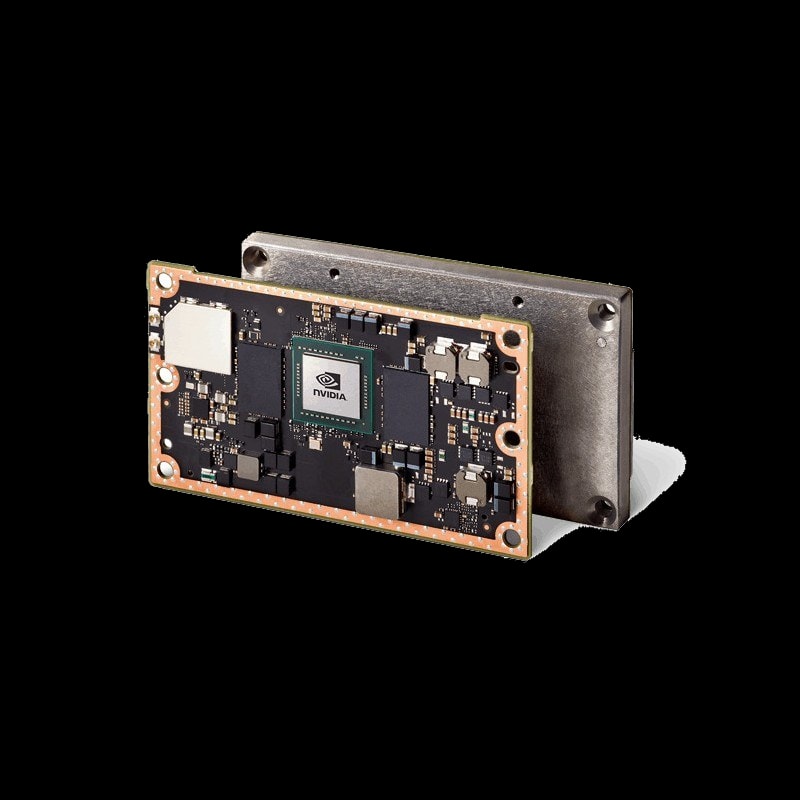

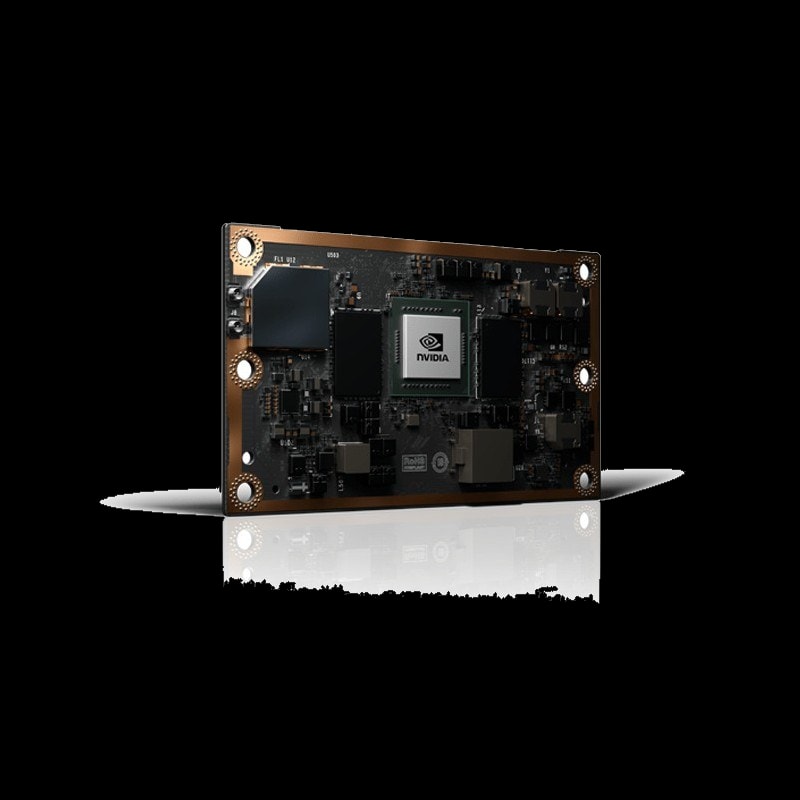

The NVIDIA Jetson TX2 8GB powered a generation of drones, robots and smart cameras with a 256-core NVIDIA Pascal GPU, a dual-core Denver 2 plus quad-core Cortex-A57 CPU and 8GB of LPDDR4 at 59.7 GB/s, all within 7.5W to 15W.
The module is discontinued. Existing carriers for the 400-pin TX2 connector are not compatible with Jetson Orin, so migration means a new carrier or a partner system; we can help scope that move.
Key Features
- 256-core Pascal GPU: 1.3 TFLOPS of FP16 compute
- Hex-core CPU: Dual-core Denver 2 and quad-core Arm Cortex-A57
- 8GB LPDDR4: 128-bit interface, 59.7 GB/s
- 32GB eMMC: On-module storage
- 7.5W to 15W: Low power for battery designs
Technical Specifications
| Specification | Details |
|---|---|
| GPU | 256-core NVIDIA Pascal GPU |
| CPU | Dual-core Denver 2 + quad-core Arm Cortex-A57 |
| Memory | 8GB 128-bit LPDDR4, 59.7 GB/s |
| Storage | 32GB eMMC 5.1 |
| Video Encode | 2x 4K30 (H.265) |
| Video Decode | 2x 4K30 (H.265) |
| Camera | 12 lanes MIPI CSI-2 |
| PCIe | 5 lanes PCIe Gen2 |
| Networking | 10/100/1000BASE-T Ethernet, Wi-Fi, Bluetooth |
| Power | 7.5W to 15W |
| Form Factor | 87 mm x 50 mm, 400-pin connector |
| Status | End of life |
Ideal Use Cases
- Reference for deployed TX2 products
- Migration planning to Jetson Orin Nano or Orin NX
Why Choose This Product?
This page documents the discontinued TX2 8GB module and its successors for teams that still support products built on it.
Looking for a current alternative? Talk to us and we will recommend the right Jetson platform for your migration.
