End of life. Jetson TX2 NX has reached end of life. Jetson Orin Nano uses the same 260-pin SO-DIMM connector and is the recommended successor.
Overview

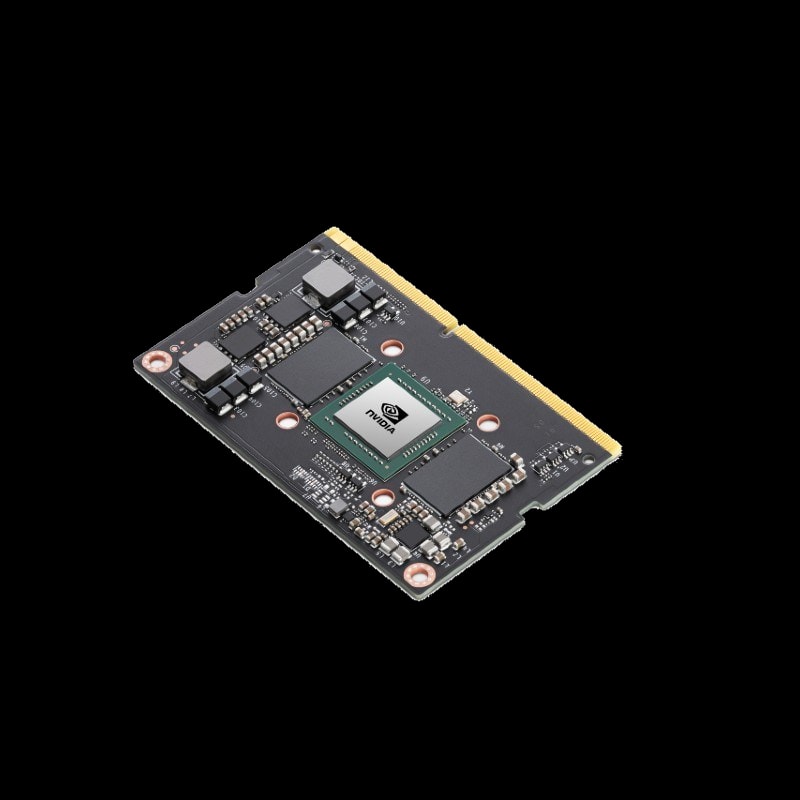

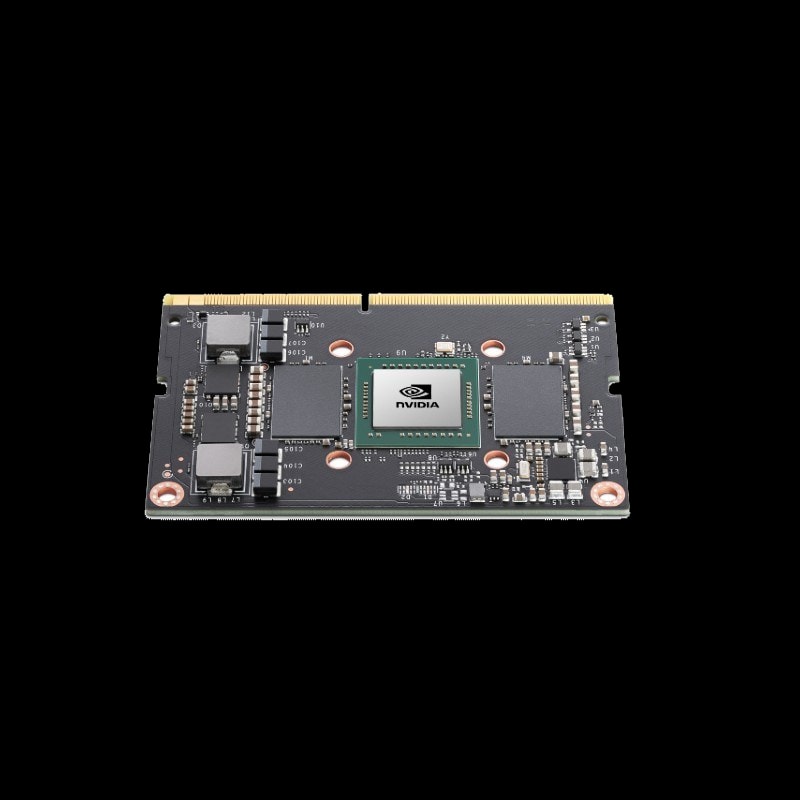

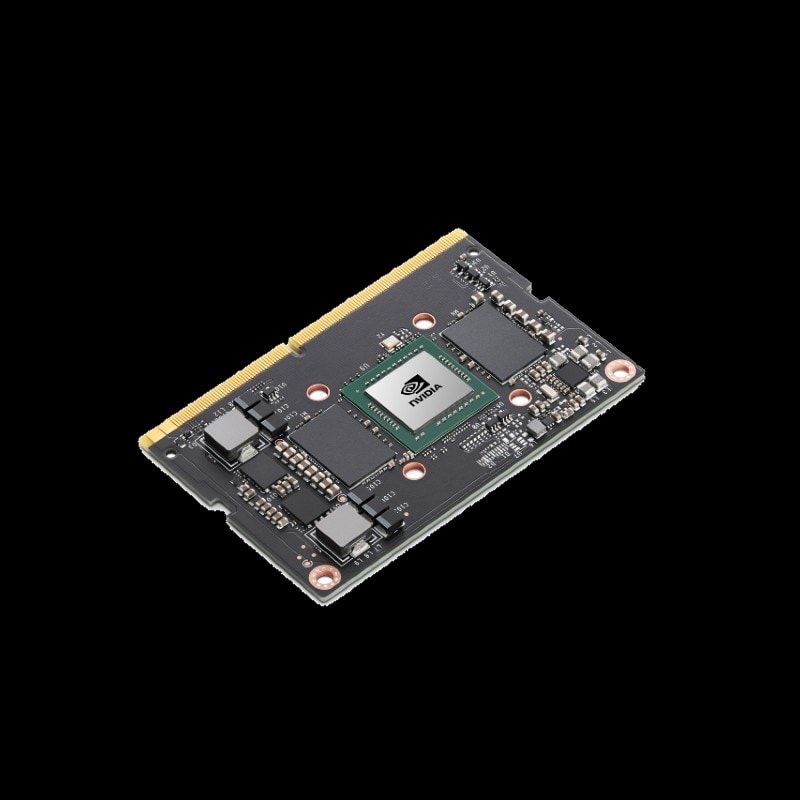

The NVIDIA Jetson TX2 NX brought the TX2 processor to the 260-pin SO-DIMM form factor shared with Jetson Nano and Xavier NX, giving Nano-based products a 2.5x AI performance upgrade without a new carrier. It pairs a 256-core NVIDIA Pascal GPU with a dual-core Denver 2 plus quad-core Cortex-A57 CPU and 4GB of LPDDR4.
The module is discontinued. Because it shares the SO-DIMM connector, Jetson Orin Nano is a direct upgrade path for most TX2 NX carriers.
Key Features
- 256-core Pascal GPU: 1.3 TFLOPS of FP16 compute
- Hex-core CPU: Dual-core Denver 2 and quad-core Arm Cortex-A57
- 4GB LPDDR4: 128-bit interface, 51.2 GB/s
- SO-DIMM form factor: 69.6 x 45 mm, 260-pin, same as Jetson Nano and Orin Nano
- 7.5W to 15W: Configurable power modes
Technical Specifications
| Specification | Details |
|---|---|
| GPU | 256-core NVIDIA Pascal GPU |
| CPU | Dual-core Denver 2 + quad-core Arm Cortex-A57 |
| Memory | 4GB 128-bit LPDDR4, 51.2 GB/s |
| Storage | 16GB eMMC 5.1 |
| Video Encode | 1x 4K60, 3x 4K30, 4x 1080p60 (H.265) |
| Video Decode | 2x 4K60, 4x 4K30, 7x 1080p60 (H.265) |
| Camera | 12 lanes MIPI CSI-2, up to 5 cameras |
| PCIe | 1x4 + 1x1 PCIe Gen2 |
| Power | 7.5W to 15W |
| Form Factor | 69.6 mm x 45 mm, 260-pin SO-DIMM |
| Status | End of life |
Ideal Use Cases
- Reference for deployed TX2 NX products
- Migration planning to Jetson Orin Nano on the same carrier
Why Choose This Product?
This page documents the discontinued TX2 NX module; its SO-DIMM successor, Jetson Orin Nano, is available today.
Looking for a current alternative? Talk to us and we will recommend the right Jetson platform for your migration.
