End of life. The Jetson TX2 series has reached end of life. Jetson Orin Nano is the recommended successor for cost-sensitive designs.
Overview

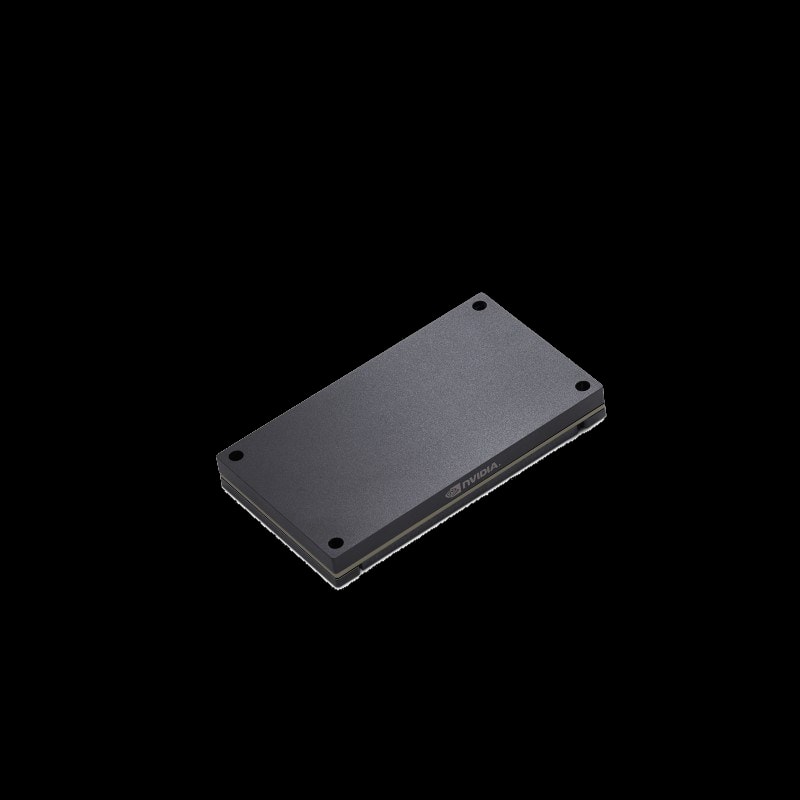

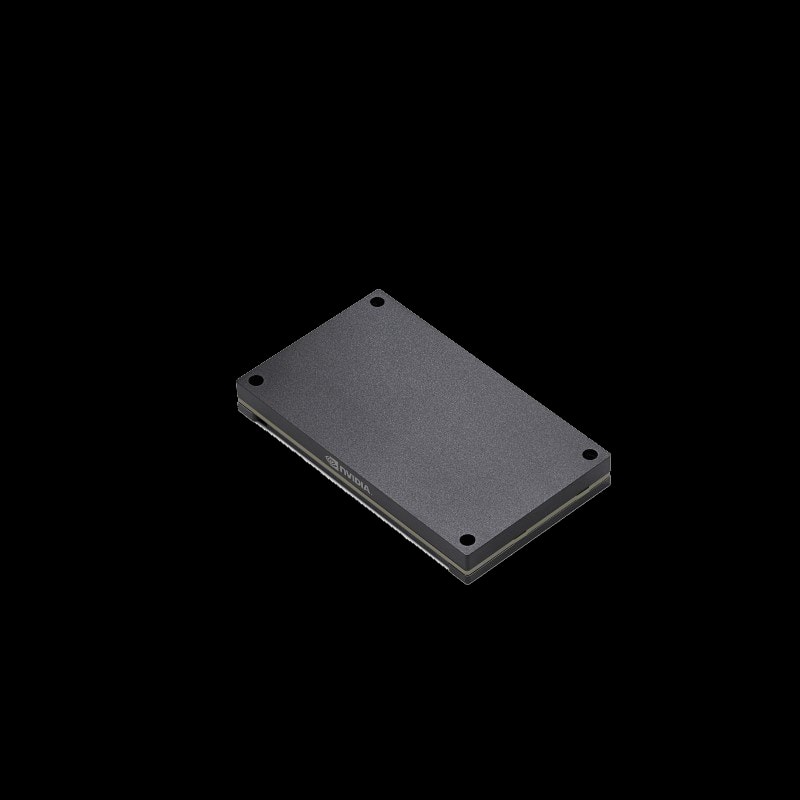

The NVIDIA Jetson TX2 4GB offered the TX2 platform at a lower price for volume products: the same 256-core NVIDIA Pascal GPU and hex-core CPU with 4GB of LPDDR4 and 16GB of eMMC, pin-compatible with the 8GB module.
The module is discontinued. Jetson Orin Nano delivers many times the AI performance at a similar price point and is the natural replacement for new designs.
Key Features
- 256-core Pascal GPU: 1.3 TFLOPS of FP16 compute
- Hex-core CPU: Dual-core Denver 2 and quad-core Arm Cortex-A57
- 4GB LPDDR4: 128-bit interface, 51.2 GB/s
- 16GB eMMC: On-module storage
- 7.5W to 15W: Low power for battery designs
Technical Specifications
| Specification | Details |
|---|---|
| GPU | 256-core NVIDIA Pascal GPU |
| CPU | Dual-core Denver 2 + quad-core Arm Cortex-A57 |
| Memory | 4GB 128-bit LPDDR4, 51.2 GB/s |
| Storage | 16GB eMMC 5.1 |
| Camera | 12 lanes MIPI CSI-2 |
| PCIe | 5 lanes PCIe Gen2 |
| Power | 7.5W to 15W |
| Form Factor | 87 mm x 50 mm, 400-pin connector |
| Status | End of life |
Ideal Use Cases
- Reference for deployed TX2 4GB products
- Migration planning to Jetson Orin Nano
Why Choose This Product?
This page documents the discontinued TX2 4GB module and its successor for teams supporting products built on it.
Looking for a current alternative? Talk to us and we will recommend the right Jetson platform for your migration.
