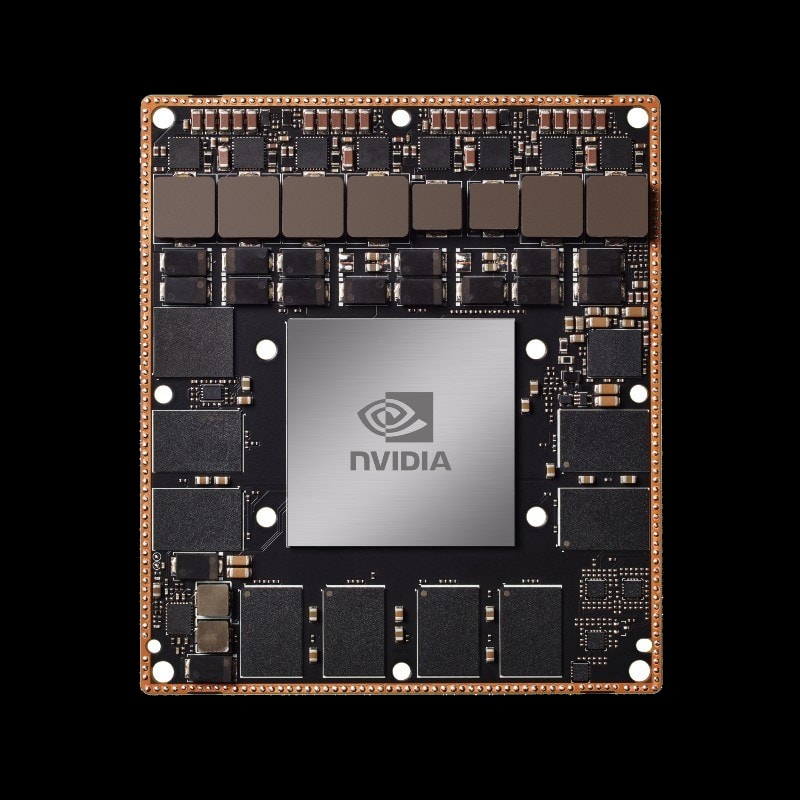

Overview
The NVIDIA Jetson AGX Xavier Industrial brings the AGX Xavier platform to applications that face extreme temperatures, vibration and safety requirements. It delivers up to 30 TOPS from a 512-core NVIDIA Volta GPU with 64 Tensor Cores and two NVDLA engines, with error-correcting memory and a safety cluster engine for functional-safety designs.
Rated for -40 to +85 degrees Celsius with 20W and 40W power modes, the module doubles the eMMC of the commercial part to 64GB and keeps the same 699-pin form factor, so a single carrier design can serve both commercial and industrial products.
Key Features
- 30 TOPS: 512-core Volta GPU with 64 Tensor Cores and 2x NVDLA
- 32GB LPDDR4x with ECC: Error-correcting memory at 136.5 GB/s for reliability in the field
- 64GB eMMC 5.1: Twice the on-module storage of the commercial AGX Xavier
- Extended temperature: -40 to +85 degrees Celsius operating range
- Shock and vibration: Qualified for industrial and mobile-machinery mounting
- Functional safety: Safety cluster engine (dual Cortex-R5 in lockstep) and error reporting
- Long lifecycle: Extended availability for industrial product roadmaps
Technical Specifications
| Specification | Details |
|---|---|
| AI Performance | 30 TOPS |
| GPU | 512-core NVIDIA Volta GPU, 64 Tensor Cores |
| DL Accelerator | 2x NVDLA |
| CPU | 8-core Arm v8.2 Carmel (64-bit) |
| Safety | Safety cluster engine with dual Arm Cortex-R5 in lockstep |
| Memory | 32GB 256-bit LPDDR4x with ECC, 136.5 GB/s |
| Storage | 64GB eMMC 5.1 |
| Video Encode | 4x 4K60 (H.265) |
| Video Decode | 2x 8K30 (H.265) |
| Camera | 16 lanes MIPI CSI-2, up to 6 cameras |
| PCIe | 16 lanes PCIe Gen4 |
| Operating Temperature | -40 to +85 degrees Celsius |
| Power | 20W and 40W modes |
| Form Factor | 100 mm x 87 mm, 699-pin connector, integrated thermal transfer plate |
Ideal Use Cases
- Industrial robots and factory automation
- Rail, mining and construction machinery
- Outdoor and agricultural autonomy
- Aerospace and defense systems
- Medical devices that require ECC memory
Why Choose This Product?
When a commercial module cannot meet the environmental or safety specification, AGX Xavier Industrial provides the same AI platform with ECC memory, extended temperature and a safety engine, without changing the carrier or software.
Interested? Contact us for pricing, volume orders and deployment support.
