Overview
The NVIDIA Jetson AGX Xavier Developer Kit gives engineers everything needed to develop and validate software for the AGX Xavier module family. The kit combines a Jetson AGX Xavier module with a compact reference carrier that exposes PCIe Gen4, two USB-C ports, HDMI, Gigabit Ethernet, M.2 slots for Wi-Fi and NVMe and a 16-lane MIPI CSI-2 camera header.
With up to 32 TOPS of AI performance from a 512-core Volta GPU and two NVDLA engines, the kit runs the same JetPack SDK, CUDA, TensorRT, DeepStream and Isaac software as production AGX Xavier modules, so code developed here deploys to any AGX Xavier variant, including the 64GB and Industrial modules.
Key Features
- 32 TOPS AI performance: 512-core Volta GPU with 64 Tensor Cores and 2x NVDLA
- 8-core Carmel CPU: Arm v8.2 cores at up to 2.26 GHz
- Complete I/O: PCIe x16 (x8 Gen4), 2x USB-C, HDMI 2.0, GbE, M.2 Key E and Key M, microSD
- 16-lane camera header: Up to 6 MIPI CSI-2 cameras for multi-sensor prototypes

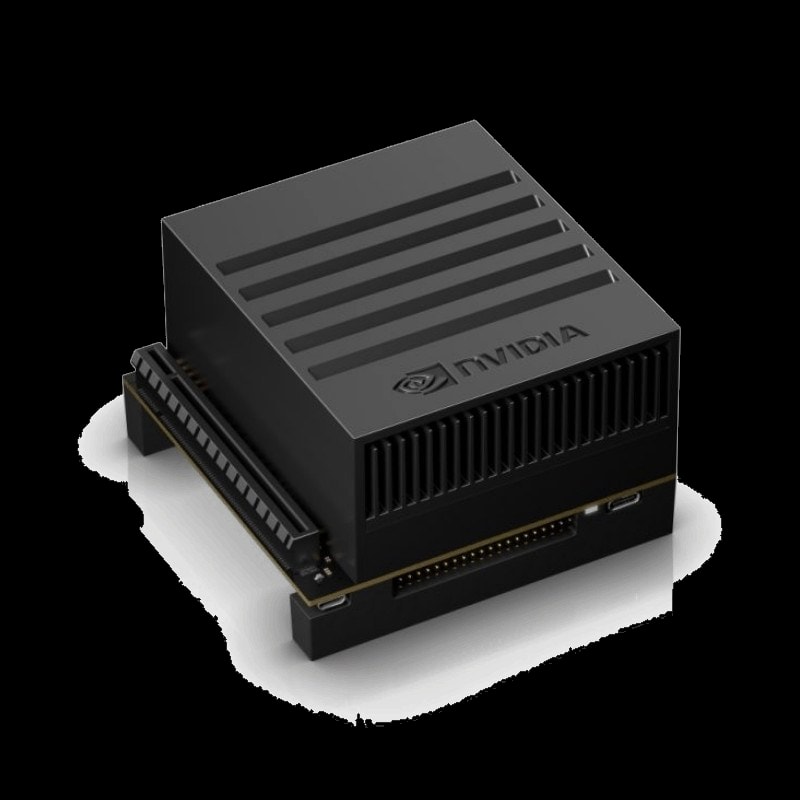

- Compact: 105 x 105 x 65 mm with an integrated heat sink and fan
- JetPack SDK: Ubuntu-based Linux with the full NVIDIA AI stack
Available Configurations
- 32GB developer kit (945-82972-0045-000): Jetson AGX Xavier 32GB module, the current configuration
- 16GB developer kit (945-82972-0000-000): the original configuration, now discontinued and available only while inventory lasts
Technical Specifications
| Specification | Details |
|---|---|
| Module | Jetson AGX Xavier 32GB (16GB variant discontinued) |
| AI Performance | 32 TOPS |
| GPU | 512-core NVIDIA Volta GPU, 64 Tensor Cores, 2x NVDLA |
| CPU | 8-core Arm v8.2 Carmel (64-bit) |
| Memory | 32GB 256-bit LPDDR4x, 136.5 GB/s |
| Storage | 32GB eMMC 5.1, microSD, M.2 Key M NVMe |
| PCIe | x16 connector (x8 PCIe Gen4) |
| USB | 2x USB-C (USB 3.1 and DisplayPort), 1x USB-C for flashing |
| Display | HDMI 2.0 |
| Camera | 16 lanes MIPI CSI-2 header |
| Networking | Gigabit Ethernet, M.2 Key E for Wi-Fi |
| Other | 40-pin expansion header, UART, CAN, I2C, SPI, GPIO |
| Power | 10W to 30W module, 65W supply included |
| Dimensions | 105 mm x 105 mm x 65 mm |
Ideal Use Cases
- Software development for AGX Xavier based products
- Robotics and autonomous machine prototypes
- Multi-camera perception research
- Benchmarking before choosing a production module
- Training and education labs
Why Choose This Product?
The developer kit is the fastest way to start building on Jetson AGX Xavier: a ready-to-run system with the full I/O of the platform and a software stack shared with every AGX Xavier production module.
Interested? Contact us for pricing, volume orders and deployment support.
