End of life. The 8GB Jetson AGX Xavier module has been discontinued by NVIDIA. Jetson Xavier NX 16GB or Jetson Orin NX cover the same performance class in a smaller module, and AGX Xavier 32GB is the pin-compatible option for existing carriers.
Overview

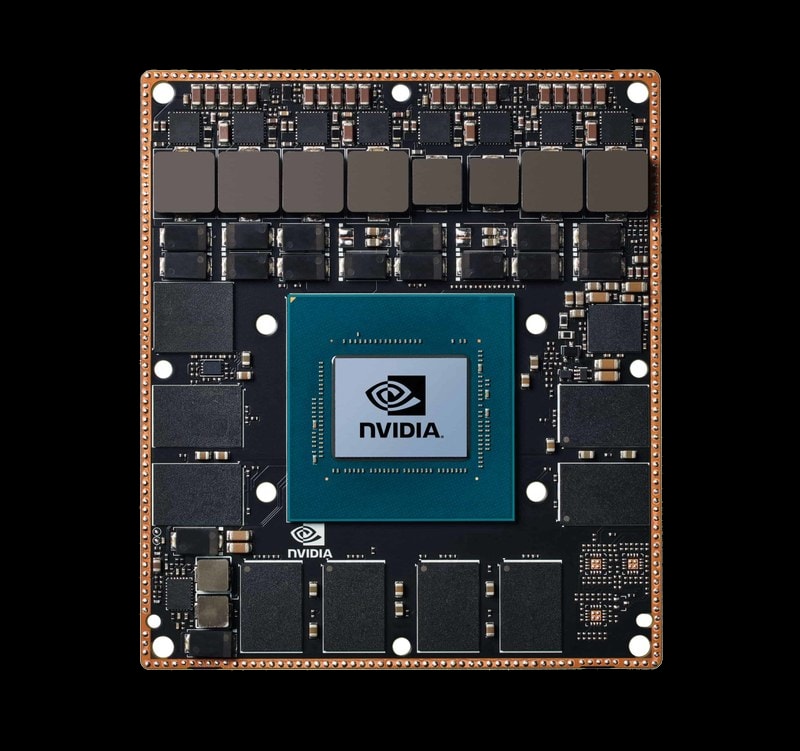

The NVIDIA Jetson AGX Xavier 8GB was a cost-reduced member of the AGX Xavier family with a 384-core NVIDIA Volta GPU, 48 Tensor Cores, a 6-core Carmel CPU and 8GB of LPDDR4x. It delivered up to 20 TOPS in 10W to 20W power modes while keeping full pin compatibility with the rest of the family.
The module has reached end of life. Existing carriers accept the AGX Xavier 32GB and 64GB modules, and new designs in this performance class are better served by Jetson Orin NX.
Key Features
- 20 TOPS: 384-core Volta GPU with 48 Tensor Cores and 2x NVDLA
- 6-core Carmel CPU: Arm v8.2 cores
- 8GB LPDDR4x: 85 GB/s of memory bandwidth
- Pin-compatible successors: AGX Xavier 32GB and 64GB fit the same carrier
- 10W to 20W: Configurable power modes
Technical Specifications
| Specification | Details |
|---|---|
| AI Performance | 20 TOPS |
| GPU | 384-core NVIDIA Volta GPU, 48 Tensor Cores |
| DL Accelerator | 2x NVDLA |
| CPU | 6-core Arm v8.2 Carmel (64-bit) |
| Memory | 8GB LPDDR4x, 85 GB/s |
| Storage | 32GB eMMC 5.1 |
| Camera | 16 lanes MIPI CSI-2 |
| Power | 10W to 20W |

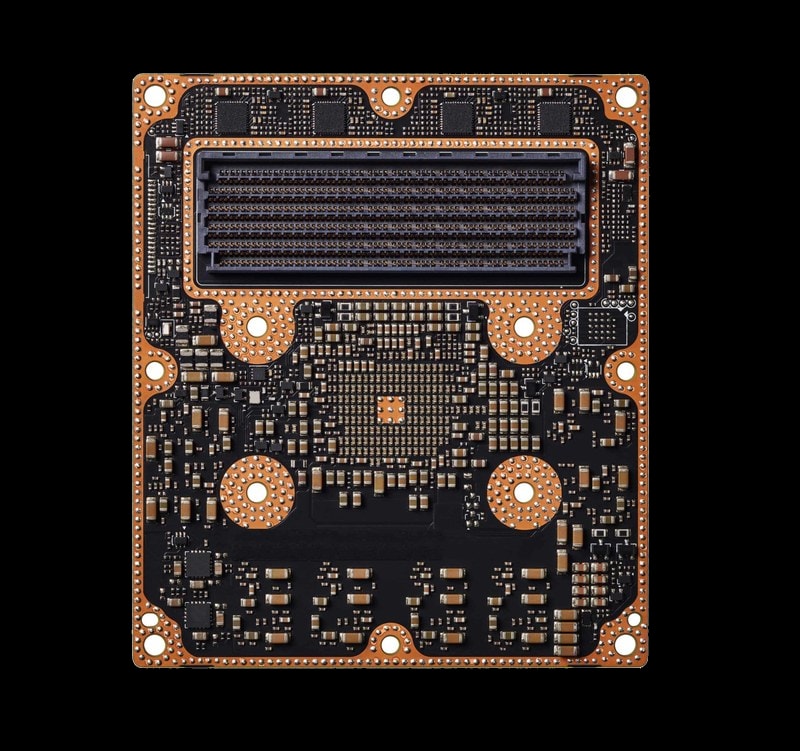

| Form Factor | 100 mm x 87 mm, 699-pin connector |
| Status | End of life |
Ideal Use Cases
- Reference for existing AGX Xavier 8GB designs
- Migration planning to Jetson Orin NX or AGX Xavier 32GB
Why Choose This Product?
This page documents the discontinued 8GB module and its replacements for teams that still support products built on it.
Looking for a current alternative? Talk to us and we will recommend the right Jetson platform for your migration.
