Overview

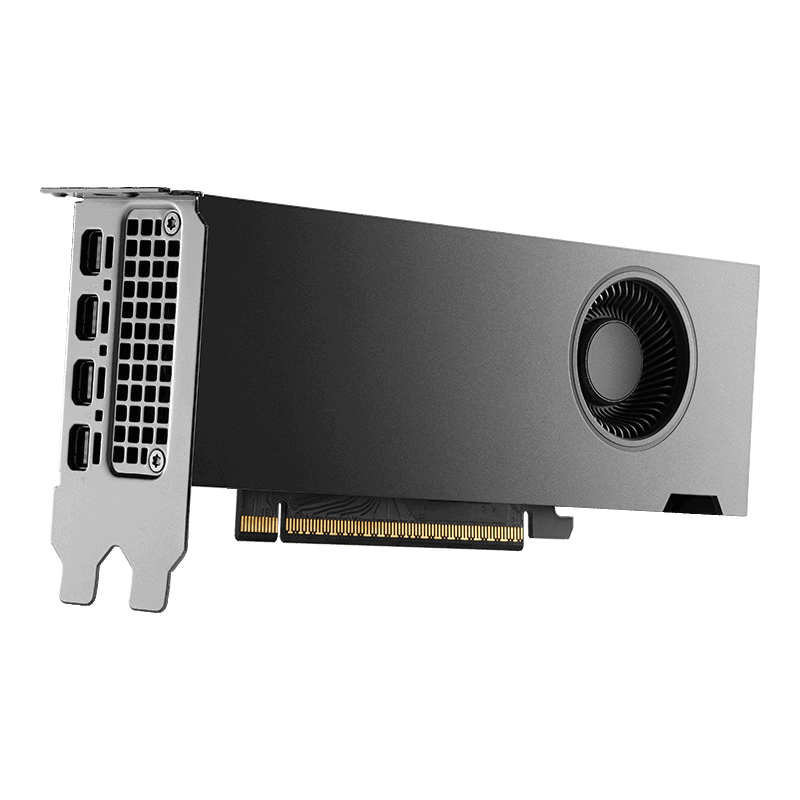

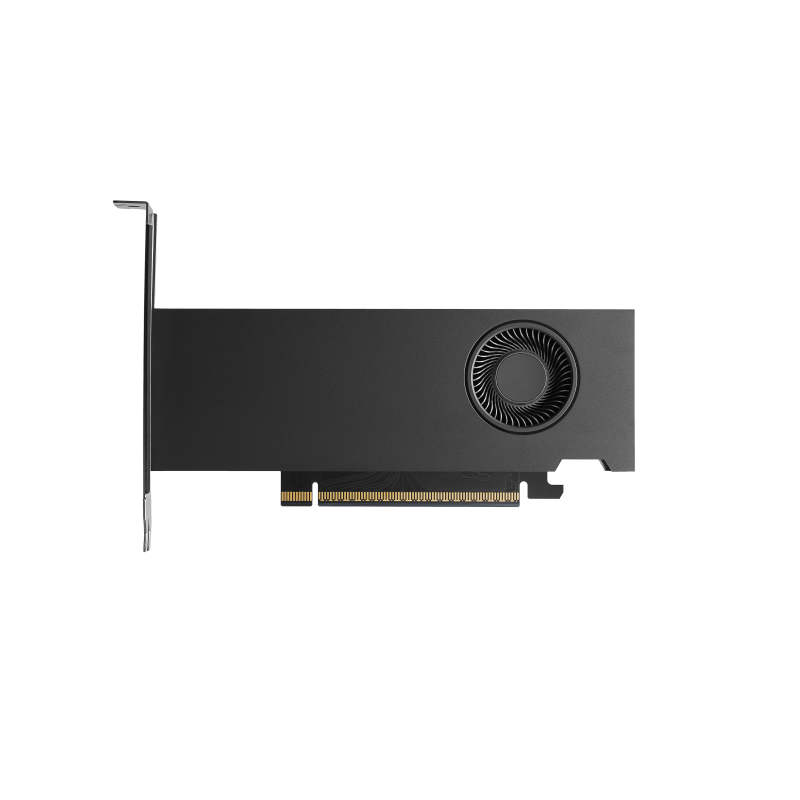

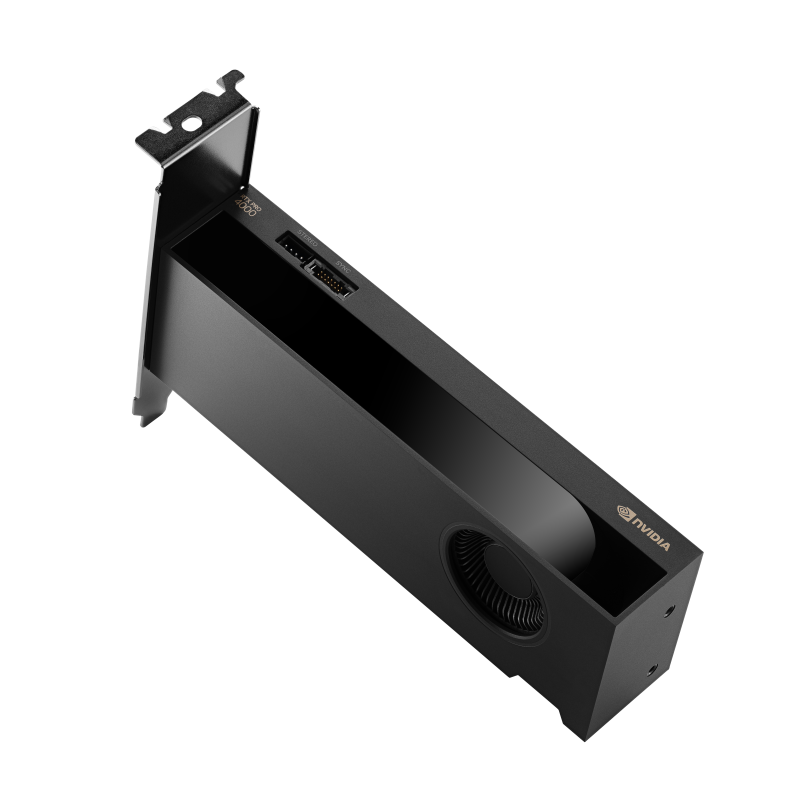

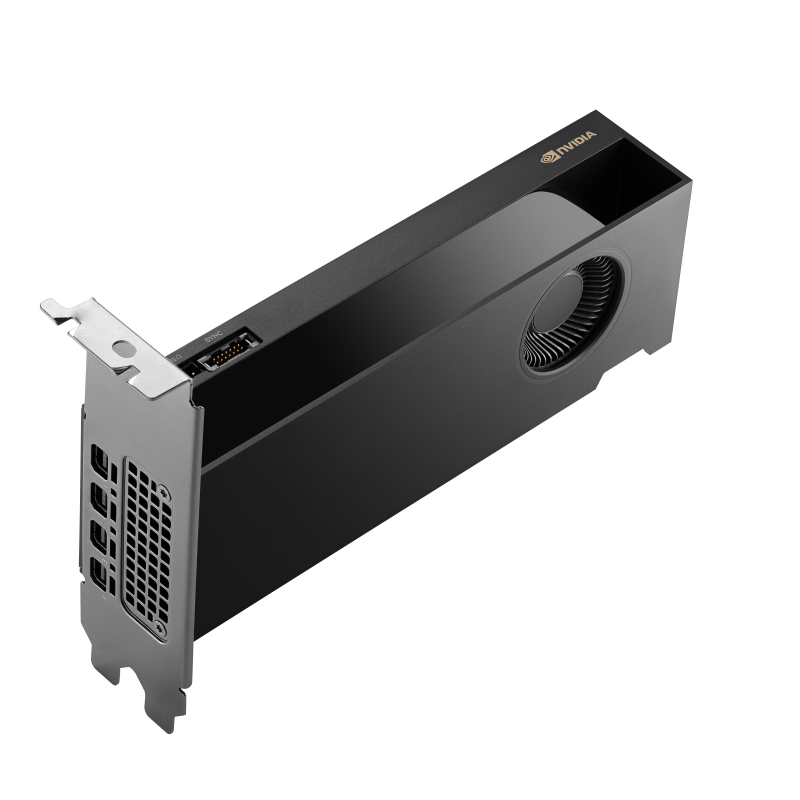

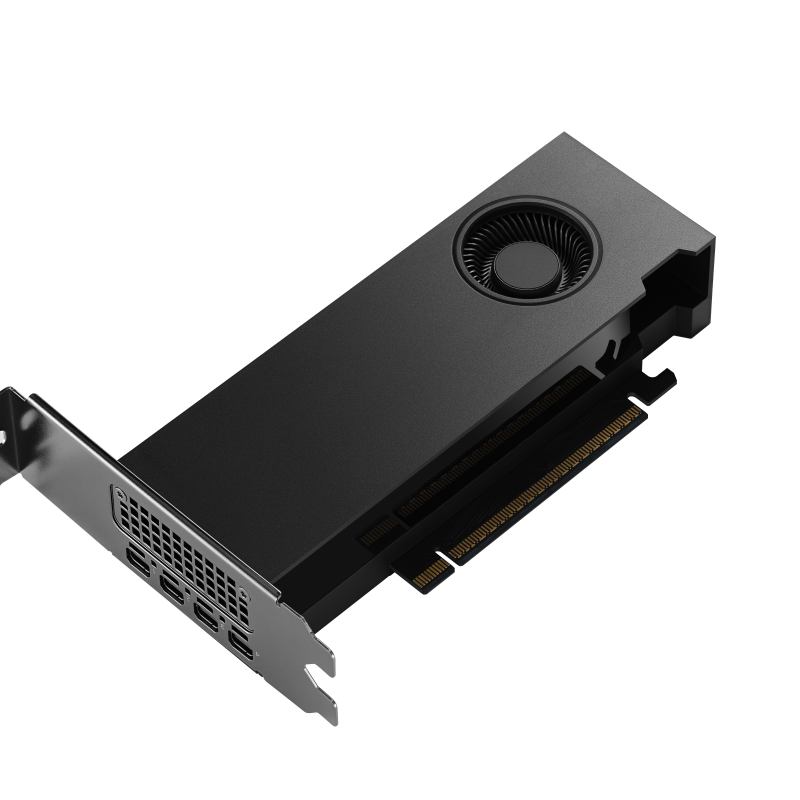

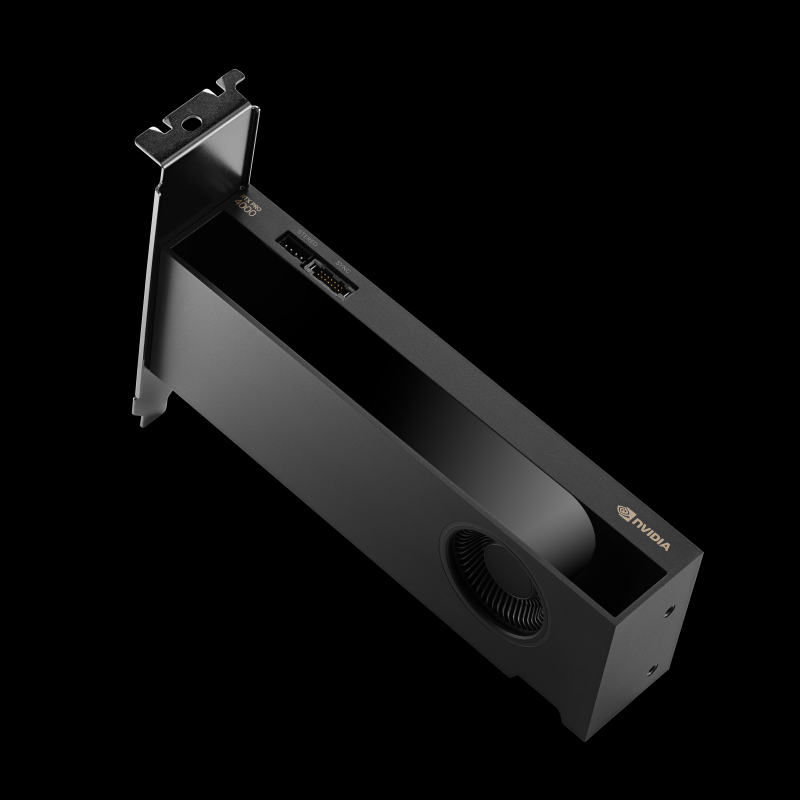

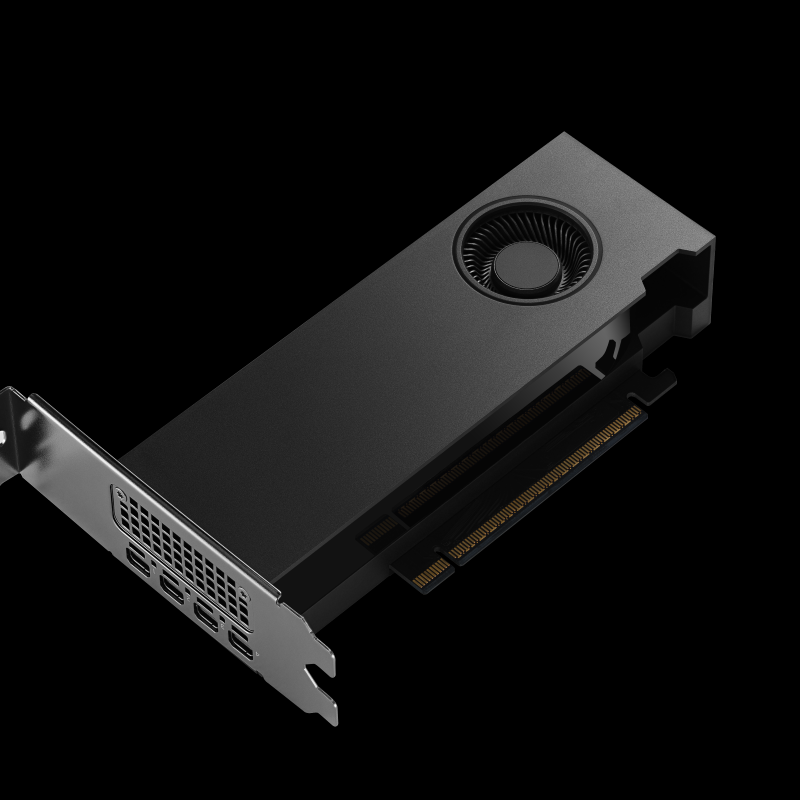

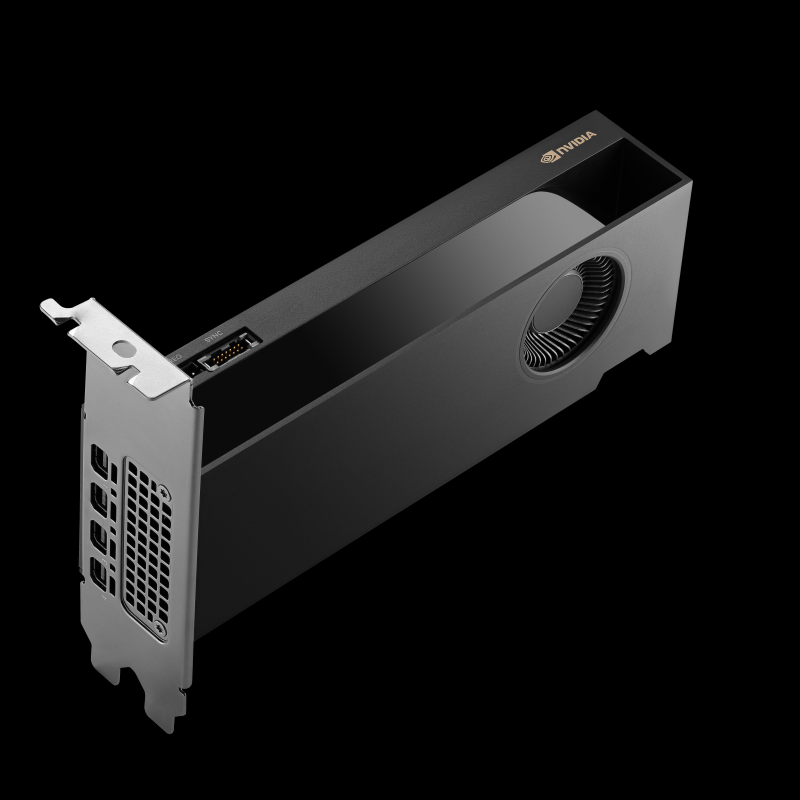

The NVIDIA RTX PRO 4000 SFF Blackwell packs remarkable AI and visualization capabilities into a small form factor (SFF) package. With 8,960 CUDA cores, 24GB of GDDR7 ECC memory, and 770 AI TOPS — all within a 70W power envelope that requires no external power connector — it enables AI-capable compact workstations and edge deployments.
Key Features
- 770 AI TOPS: Serious AI inference in a compact package
- 8,960 CUDA Cores: Full Blackwell compute in SFF form factor
- 24GB GDDR7 ECC: Professional-grade memory for complex workloads
- 70W — No External Power: Runs from PCIe slot power alone
- Half-Height Design: Fits SFF and low-profile workstations
- 4x Mini DisplayPort 2.1b: Multi-display support with included adapters
Technical Specifications
| Specification | Details |
|---|---|
| GPU Architecture | NVIDIA Blackwell |
| CUDA Cores | 8,960 |
| Tensor Cores | 280 (5th Gen) |
| RT Cores | 70 (4th Gen) |
| Memory | 24 GB GDDR7 with ECC |
| Memory Interface | 192-bit |
| Memory Bandwidth | 432 GB/s |
| FP32 Performance | 24 TFLOPS |
| AI Performance | 770 TOPS (FP4 Sparse) |
| RT Performance | 73 TFLOPS |
| TDP | 70W (no external power) |
| Interface | PCIe 5.0 x8 |
| Display Outputs | 4x Mini DisplayPort 2.1b |
| Form Factor | 2.7" H x 6.6" L, HHHL Dual Slot |
Ideal Use Cases
- Small form factor AI workstations for developers and data scientists
- Compact desktop CAD and engineering design stations
- Edge AI inference in space-constrained environments
- Multi-display trading and financial analytics desks
- Healthcare and medical imaging workstations
Why Choose This Product?
The RTX PRO 4000 SFF Blackwell proves that compact doesn't mean compromised. At 770 AI TOPS with no external power required, it brings Blackwell-class AI to every SFF workstation on the market. This is the card that makes AI-capable compact workstations a reality.
Interested? Contact us for SFF workstation recommendations and volume pricing.
