Overview

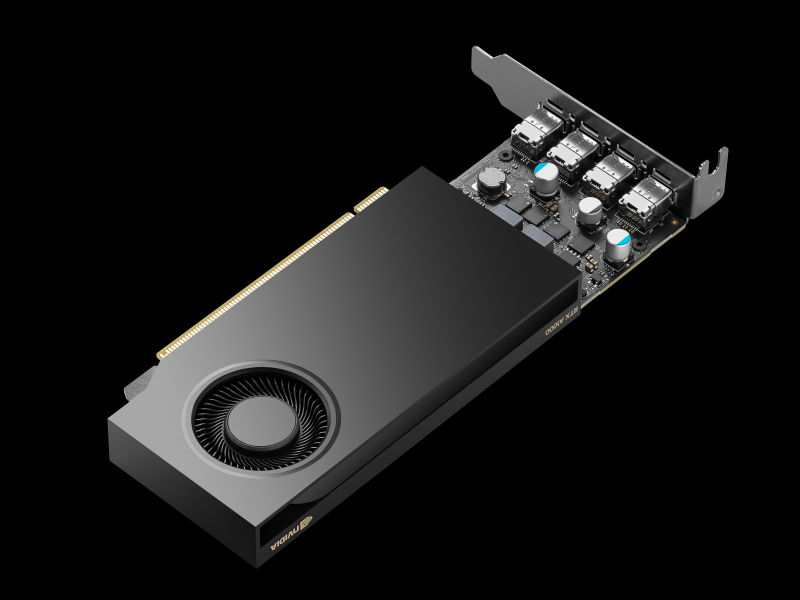

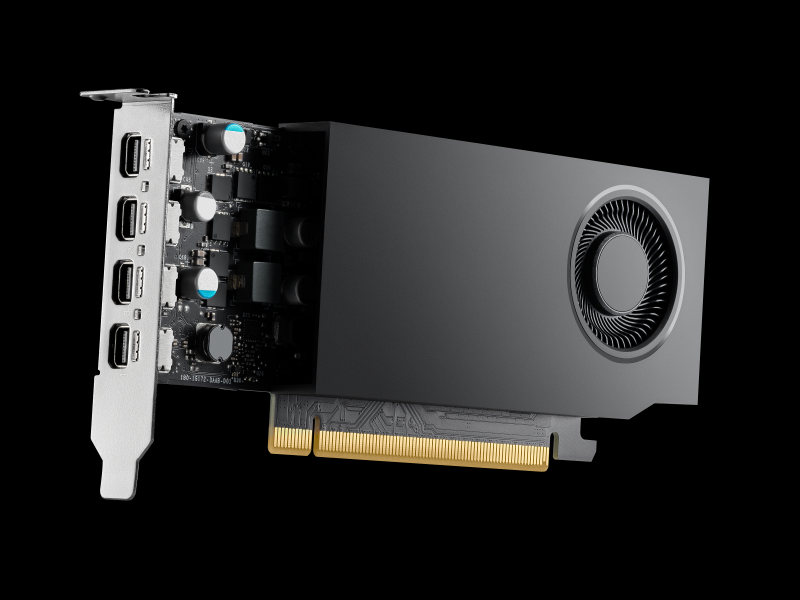

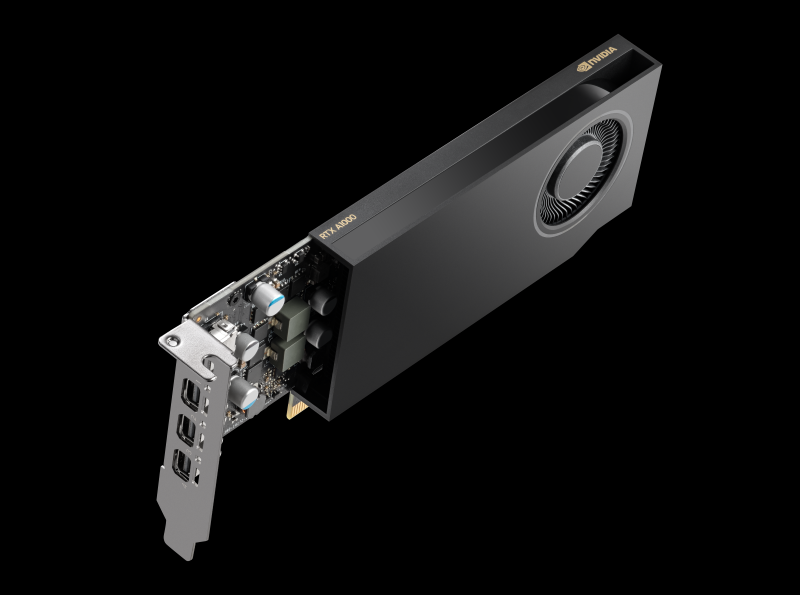

The NVIDIA RTX A1000 is the most compact way to add professional RTX capability to a workstation. Built on the NVIDIA Ampere architecture, it combines 2,304 CUDA cores, 72 third-generation Tensor Cores and 18 second-generation RT Cores with 8GB of GDDR6 memory in a single-slot, low-profile card that draws only 50W from the PCIe slot.
Four Mini DisplayPort 1.4a outputs drive up to four 4K displays, and hardware encode and decode engines with AV1 decode support accelerate video workflows. The card is ISV-certified for leading CAD, design and content applications and ships with NVIDIA RTX Enterprise drivers.
Key Features
- Ampere RTX architecture: 2,304 CUDA cores, 72 Tensor Cores, 18 RT Cores
- 8GB GDDR6: 128-bit interface, 192 GB/s
- 6.7 TFLOPS FP32: With 13.2 TFLOPS of RT Core and 53.8 TFLOPS of FP16 Tensor performance
- Single-slot, low-profile: Fits small form factor and low-profile chassis, no auxiliary power

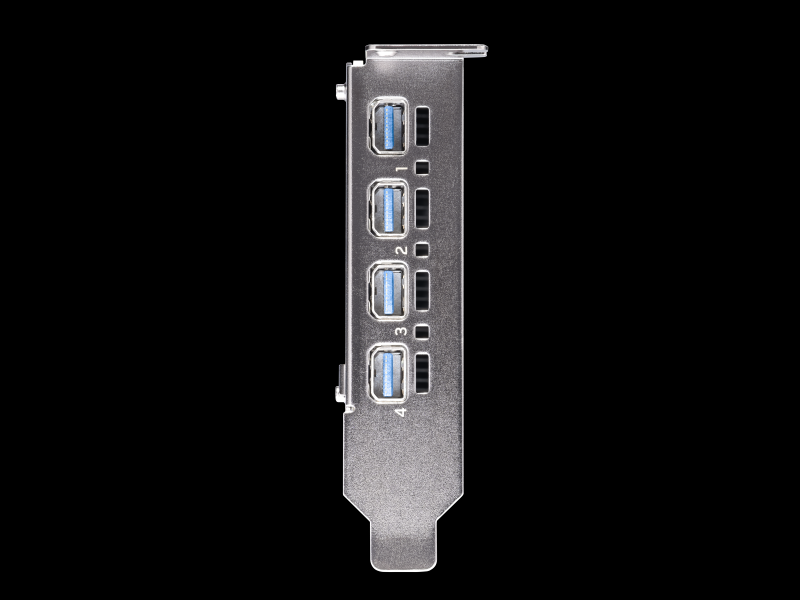

- Four display outputs: 4x Mini DisplayPort 1.4a, up to 4x 4K120 or 2x 8K30
- Video engines: 1x NVENC, 2x NVDEC with AV1 decode
- ISV certified: Professional drivers and certifications for CAD, BIM and DCC tools
Technical Specifications
| Specification | Details |
|---|---|
| Architecture | NVIDIA Ampere |
| CUDA Cores | 2,304 |
| Tensor Cores | 72 (third generation) |
| RT Cores | 18 (second generation) |
| GPU Memory | 8GB GDDR6 |
| Memory Interface | 128-bit |
| Memory Bandwidth | 192 GB/s |
| Single Precision Performance | 6.7 TFLOPS |
| RT Core Performance | 13.2 TFLOPS |
| FP16 Tensor Performance | 53.8 TFLOPS |
| INT8 Tensor Performance | 107.8 TOPS |
| System Interface | PCIe 4.0 x8 |
| Power Consumption | 50W |
| Thermal Solution | Active |
| Form Factor | 2.7 in H x 6.4 in L, single slot, low profile |
| Display Connectors | 4x Mini DisplayPort 1.4a |
| Max Simultaneous Displays | 4x 4096 x 2160 @ 120Hz, 4x 5120 x 2880 @ 60Hz, 2x 7680 x 4320 @ 30Hz |
| Encode / Decode | 1x encode, 2x decode (+AV1 decode) |
| Graphics APIs | DirectX 12, Shader Model 6.6, OpenGL 4.6, Vulkan 1.3 |
| Compute APIs | CUDA, OpenCL 3.0, DirectCompute |
Ideal Use Cases
- CAD, BIM and 2D/3D design on compact workstations
- Multi-display trading, control-room and medical viewing stations
- Entry-level ray-traced visualization
- AI-assisted photo and video editing
- Small form factor and low-profile OEM systems
Why Choose This Product?
The RTX A1000 delivers certified professional graphics, real-time ray tracing and AI acceleration in a card that fits almost any chassis and needs no extra power cable, making it the right upgrade for space- and power-constrained workstations.
Interested? Contact us for pricing, volume orders and deployment support.
