Overview

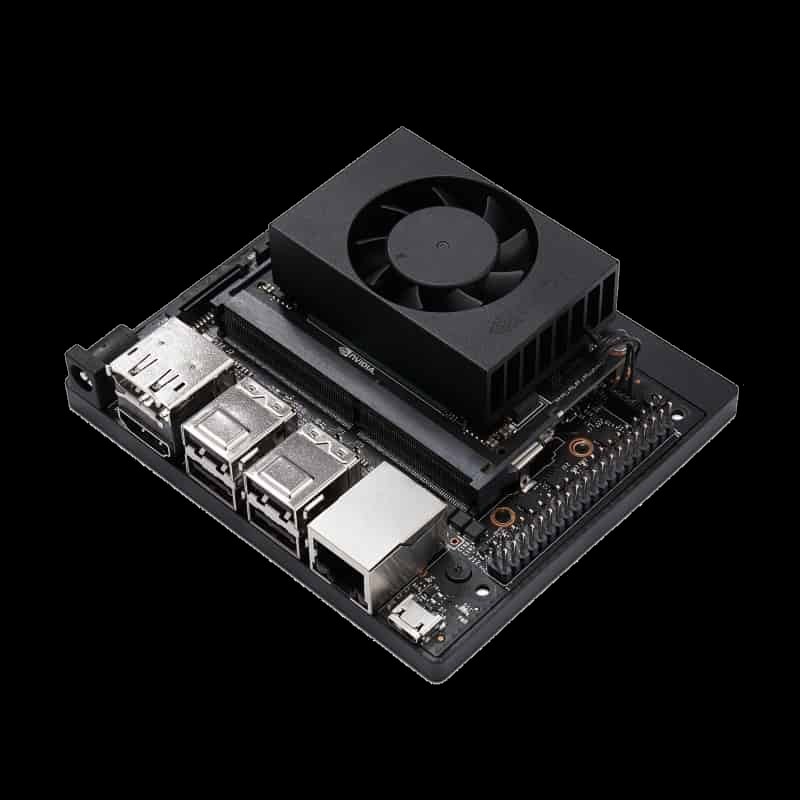

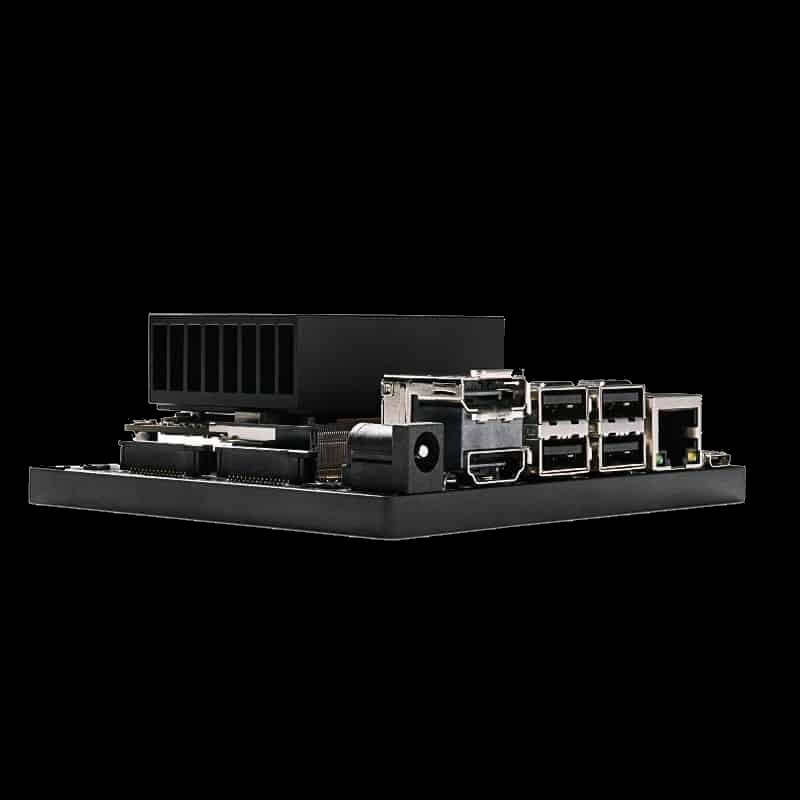

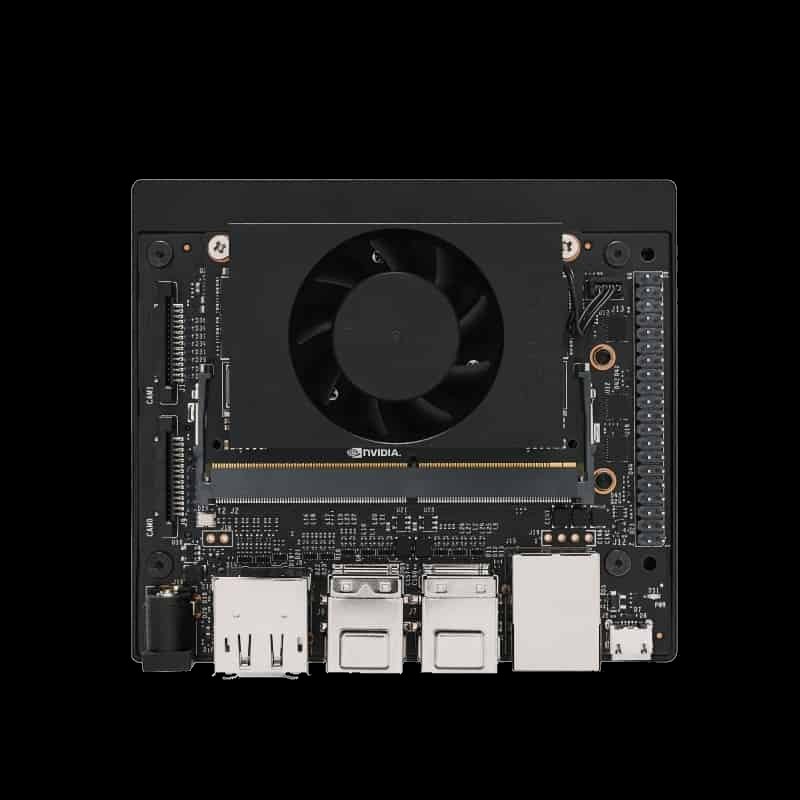

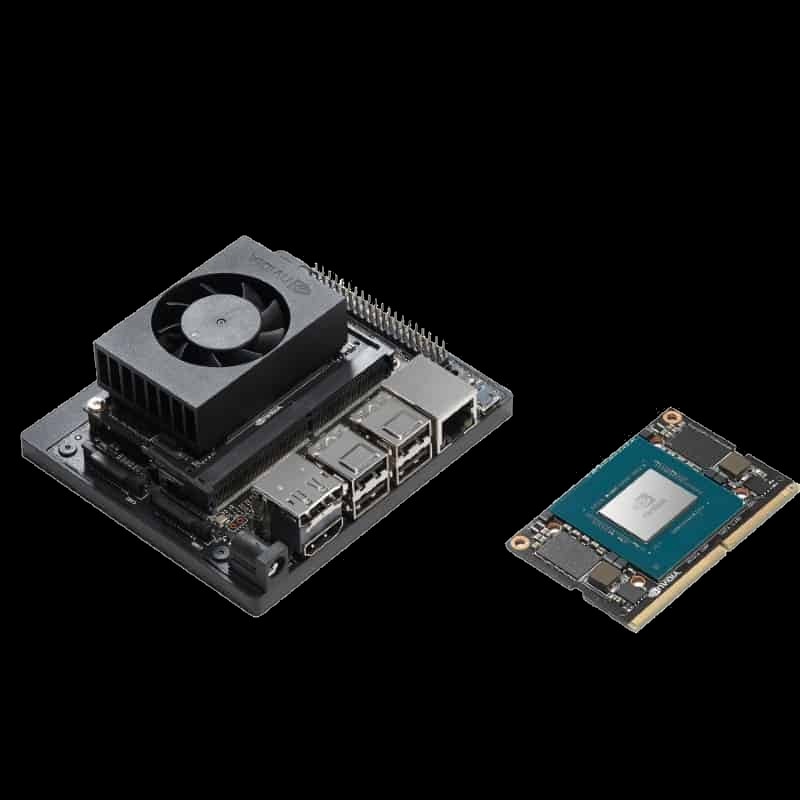

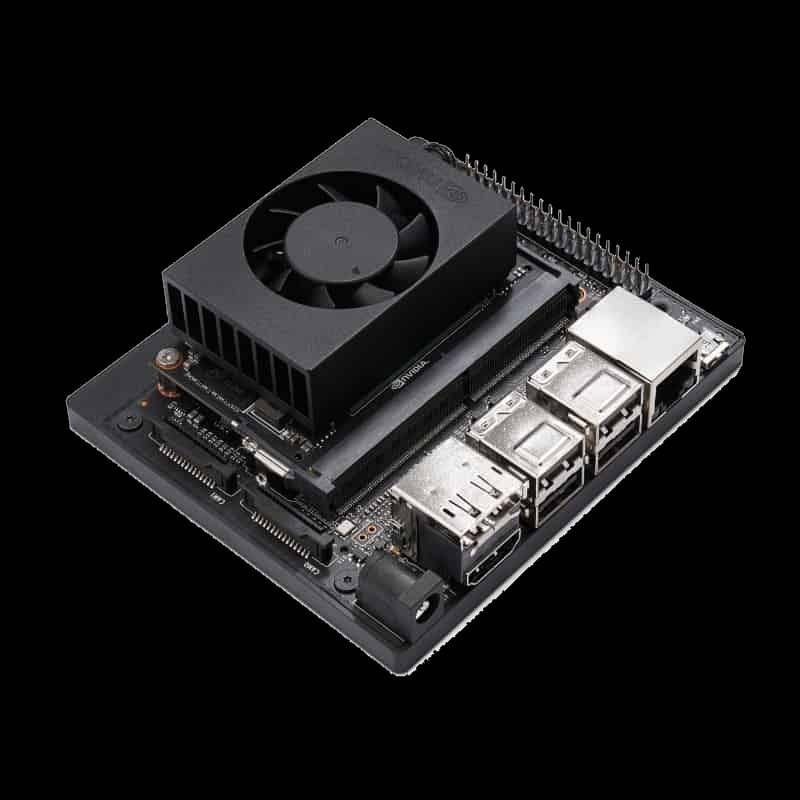

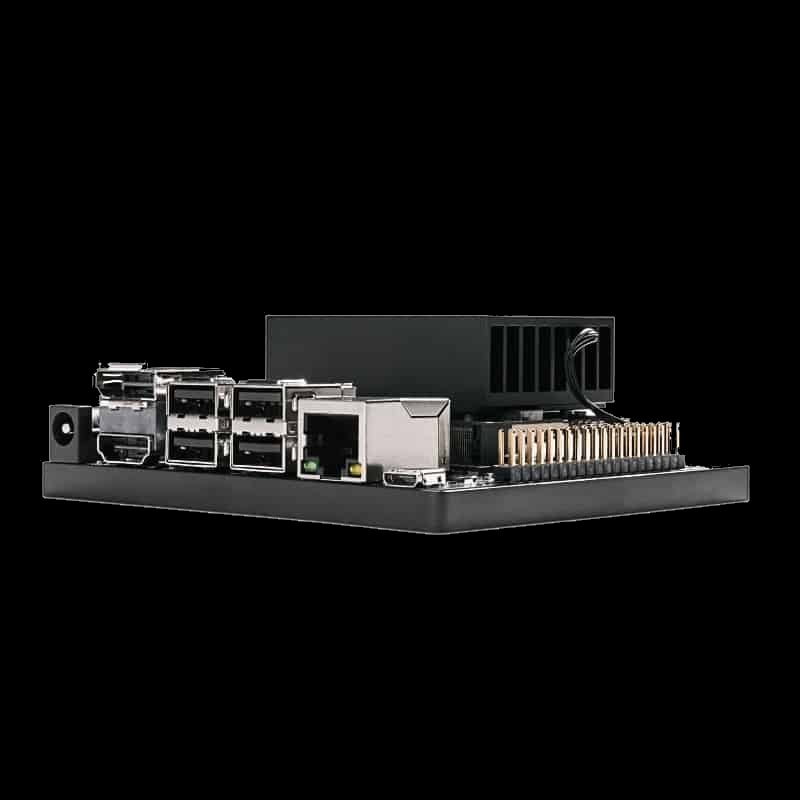

The NVIDIA Jetson Xavier NX Developer Kit puts 21 TOPS of AI performance on a desk-sized reference carrier for developing and evaluating Xavier NX based products. The kit includes a Jetson Xavier NX module (microSD boot), a pre-installed M.2 Wi-Fi and Bluetooth card and a carrier with four USB 3.1 ports, HDMI and DisplayPort outputs, Gigabit Ethernet, an M.2 Key M slot for NVMe and two MIPI CSI-2 camera connectors.
It runs NVIDIA JetPack, so CUDA, TensorRT, DeepStream and Isaac workloads developed on the kit move directly to Xavier NX production modules and, with a recompile, to the Orin family.
Key Features
- 21 TOPS AI performance: 384-core Volta GPU with 48 Tensor Cores and 2x NVDLA
- 6-core Carmel CPU: Arm v8.2 cores at up to 1.9 GHz
- 8GB LPDDR4x: 59.7 GB/s of memory bandwidth
- Desktop-class I/O: 4x USB 3.1, HDMI, DisplayPort, GbE, M.2 Key E (Wi-Fi included) and Key M
- Dual camera connectors: Two MIPI CSI-2 connectors for stereo and multi-camera prototypes
- Compact: 103 x 90.5 x 34 mm with an active heat sink
Technical Specifications
| Specification | Details |
|---|---|
| Module | Jetson Xavier NX (8GB, microSD boot) |
| AI Performance | 21 TOPS |
| GPU | 384-core NVIDIA Volta GPU, 48 Tensor Cores, 2x NVDLA |
| CPU | 6-core Arm v8.2 Carmel (64-bit) |
| Memory | 8GB 128-bit LPDDR4x, 59.7 GB/s |
| Storage | microSD (module), M.2 Key M NVMe slot |
| USB | 4x USB 3.1 Type-A, 1x Micro-USB |
| Display | HDMI and DisplayPort |
| Camera | 2x MIPI CSI-2 connectors |
| Networking | Gigabit Ethernet, M.2 Key E Wi-Fi 802.11ac and Bluetooth (included) |
| Other | 40-pin expansion header |
| Power | 10W to 20W module, 19V DC input |
| Dimensions | 103 mm x 90.5 mm x 34 mm |
Ideal Use Cases
- Prototyping Xavier NX based smart cameras and robots
- Edge AI proof-of-concepts and benchmarking
- Education and training labs
- Evaluation before choosing between Xavier NX and Orin NX
Why Choose This Product?
The Xavier NX Developer Kit is a complete, affordable edge AI workstation with the same software stack as the production module, ideal for evaluation and early development.
Interested? Contact us for pricing, volume orders and deployment support.
