Overview

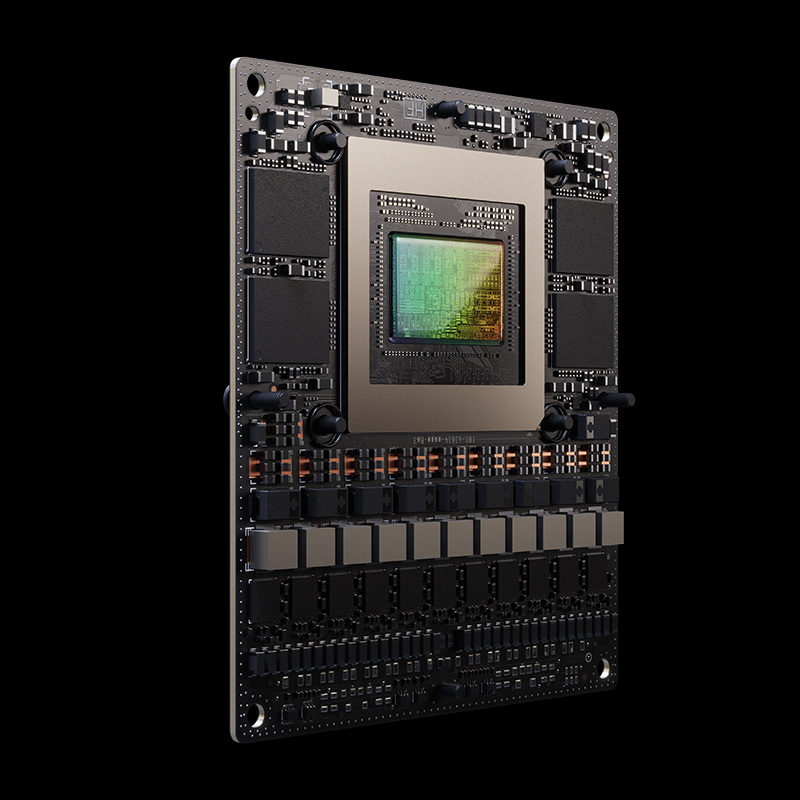

The NVIDIA Jetson T4000 brings the Jetson Thor architecture to designs with tighter power and cost budgets. Its 1,536-core NVIDIA Blackwell GPU with 64 fifth-generation Tensor Cores delivers up to 1,200 TFLOPS of FP4 AI performance, still several times more than Jetson AGX Orin, in a 40W to 70W envelope.

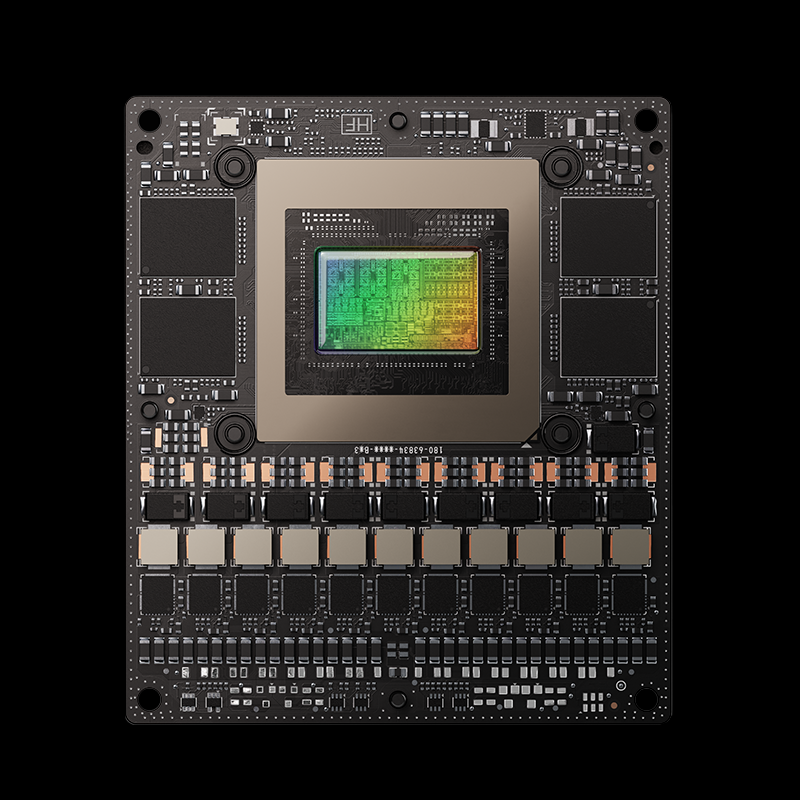

With a 12-core Arm Neoverse-V3AE CPU, 64GB of LPDDR5X memory at 273 GB/s and the same 699-pin form factor and I/O as Jetson T5000, T4000 lets you scale one carrier design across two performance tiers. It runs the same JetPack 7 software stack, so models and pipelines developed on T5000 deploy without changes.
Key Features
- 1,200 FP4 TFLOPS: Blackwell GPU with 1,536 CUDA cores and 64 fifth-generation Tensor Cores
- 12-core Neoverse-V3AE CPU: Arm v9 cores with large L2 and shared L3 caches for real-time control loops
- 64GB LPDDR5X: 256-bit interface, 273 GB/s of bandwidth

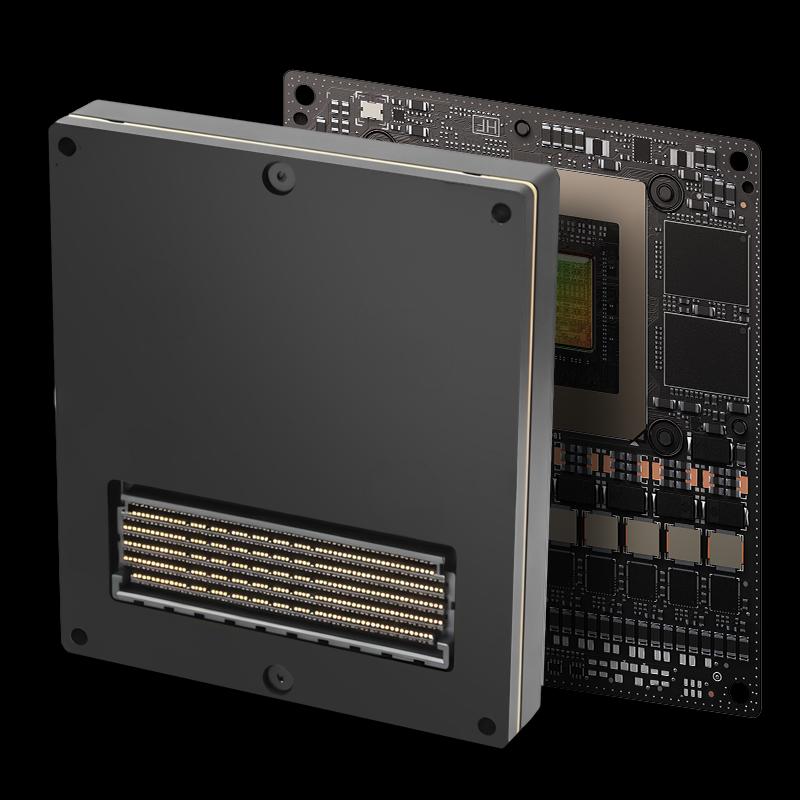

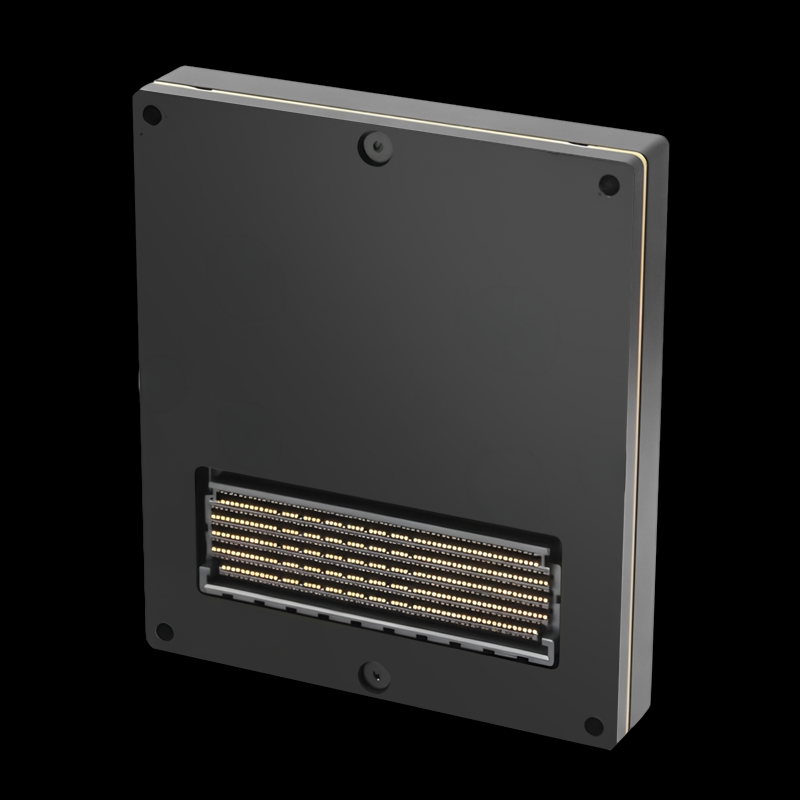

- Pin-compatible with T5000: Same 100 x 87 mm module, connector and thermal interface
- Rich sensor I/O: Up to 20 cameras over HSB, 16 MIPI CSI lanes, 4x 25GbE, PCIe Gen5
- 40W to 70W: Lower power envelopes for fanless and battery-powered designs
- JetPack 7: Isaac, Holoscan, Metropolis and CUDA supported out of the box
Technical Specifications
| Specification | Details |
|---|---|
| AI Performance | 1,200 TFLOPS (FP4, sparse) |
| GPU | 1,536-core NVIDIA Blackwell GPU, 64 fifth-generation Tensor Cores |
| CPU | 12-core Arm Neoverse-V3AE (64-bit) |
| Vision Accelerator | 1x PVA v3 |
| Memory | 64GB 256-bit LPDDR5X, 273 GB/s |
| Storage | NVMe over PCIe, SSD over USB 3.2 |
| Camera | Up to 20 cameras over HSB, up to 6 cameras over 16 MIPI CSI lanes |
| PCIe | Up to 8 lanes Gen5 |
| USB | 3x USB 3.2, 4x USB 2.0 |
| Networking | 4x 25GbE |
| Display | 4x shared HDMI 2.1 / DisplayPort 1.4 |
| Power | 40W to 70W |
| Form Factor | 100 mm x 87 mm, 699-pin board-to-board connector, integrated TTP |
Ideal Use Cases
- Autonomous mobile robots and AMR fleets
- Agricultural and logistics machines
- Smart city and traffic analytics with many camera streams
- Medical and industrial edge devices with strict power budgets
- Product lines that scale between T4000 and T5000 on one carrier
Why Choose This Product?
Jetson T4000 gives you Blackwell-class edge AI with 64GB of memory at a mid-range price and power point, while staying pin-compatible with the flagship T5000. It is the right choice when you need generative AI at the edge but not the full 130W of the top module.
Interested? Contact us for pricing, volume orders and deployment support.
