Description
Overview

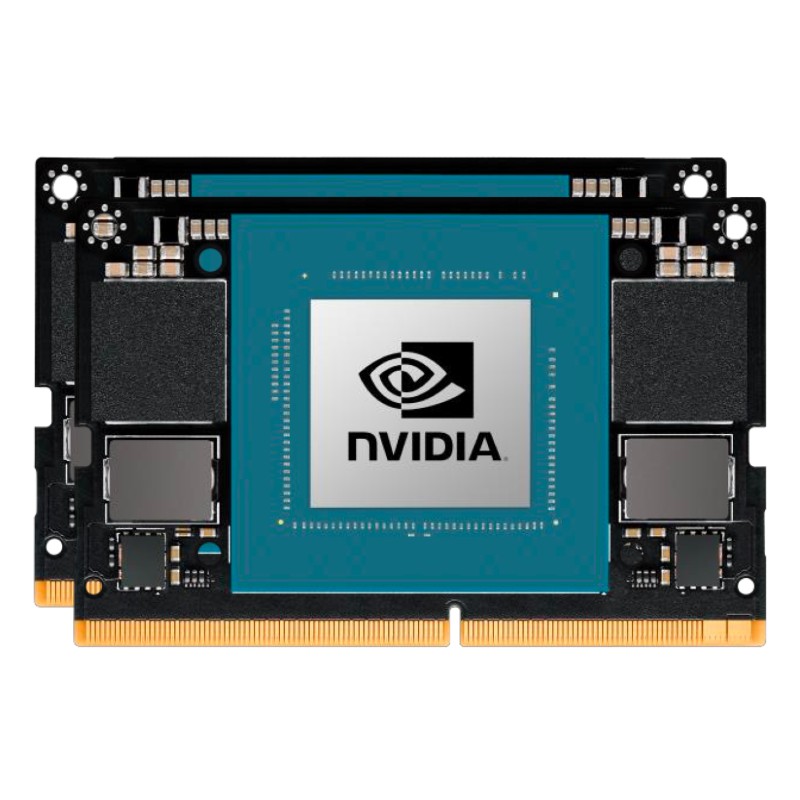

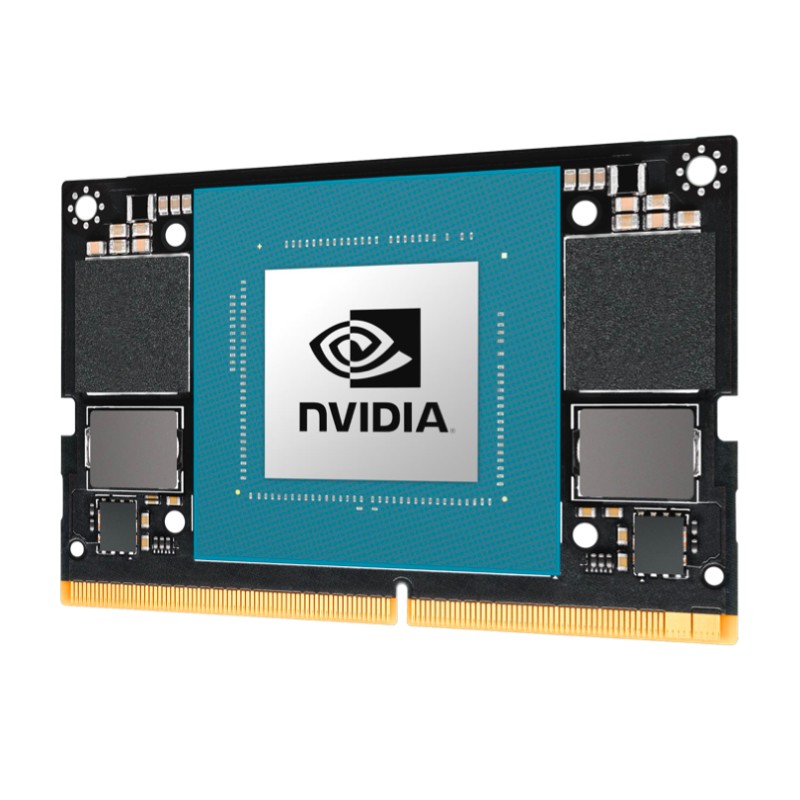

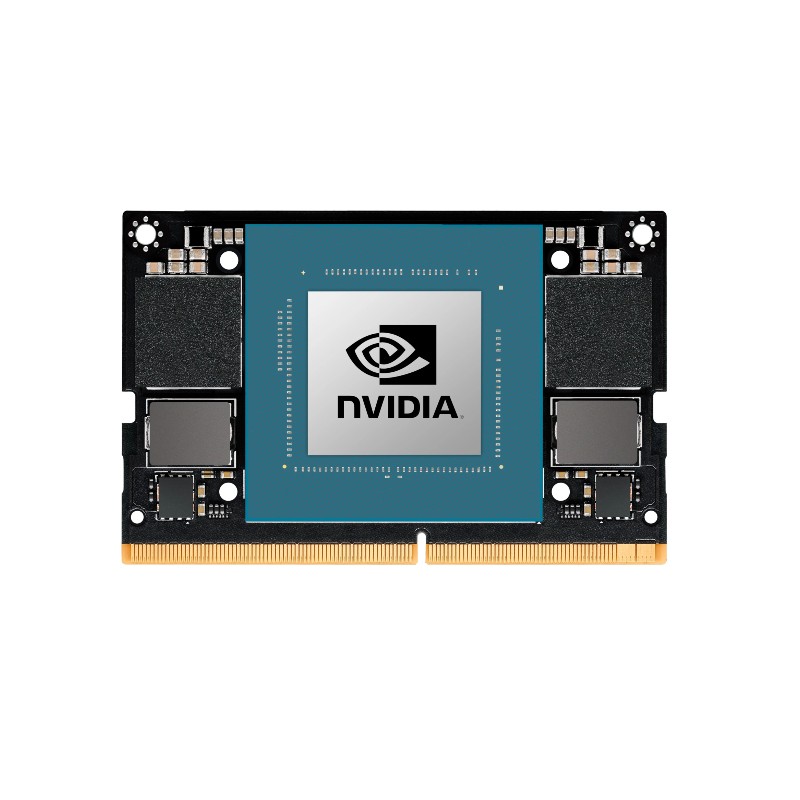

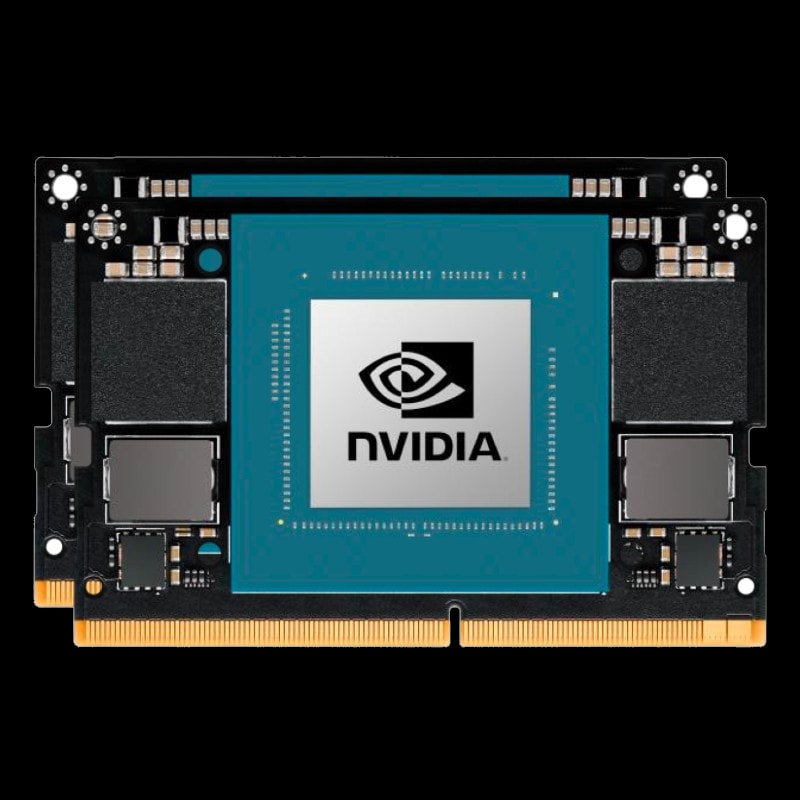

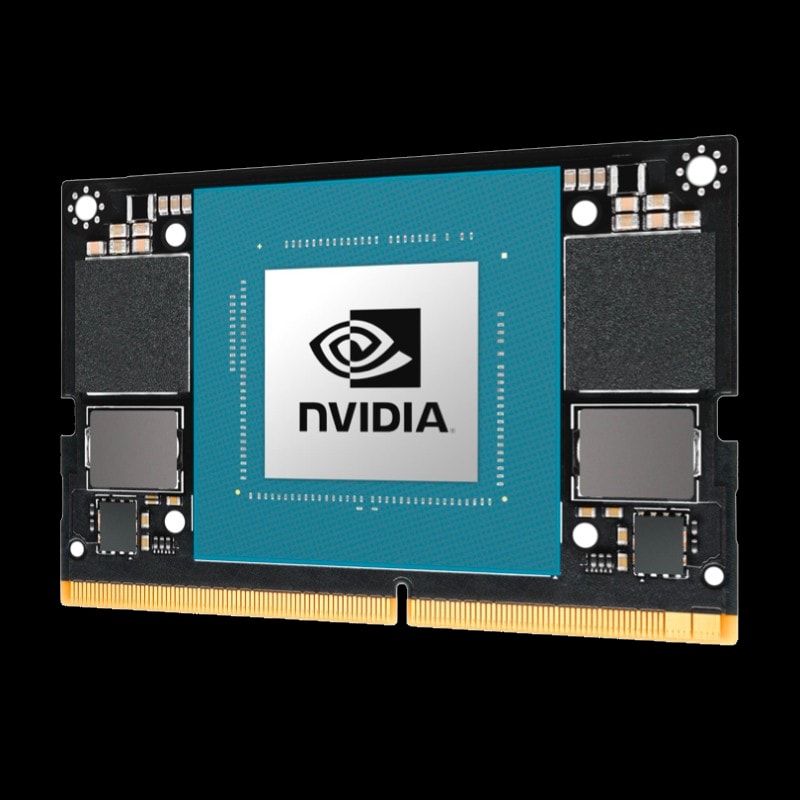

The NVIDIA Jetson Orin NX 8GB delivers impressive 117 TOPS of AI performance in the same compact SO-DIMM form factor as its 16GB sibling. Built on the NVIDIA Ampere architecture, it offers a cost-effective path to deploying powerful edge AI across fleets of devices, from robots to smart cameras to industrial controllers.
With 1024 CUDA cores, 32 Tensor Cores, and a 6-core Arm CPU, the Orin NX 8GB is designed for production deployments where per-unit cost matters but AI performance cannot be compromised. It shares the same 260-pin SO-DIMM connector as the Orin NX 16GB, enabling easy scaling across product tiers.
Key Features
- 117 TOPS AI Performance: Strong edge AI compute at an accessible price point
- 1024 CUDA Cores + 32 Tensor Cores: Full Ampere GPU for accelerated AI inference and parallel processing
- 8GB LPDDR5 Memory: 102.4 GB/s bandwidth for efficient model inference
- 6-Core Arm CPU: Cortex-A78AE at 1.7 GHz for reliable application processing
- SO-DIMM Form Factor: Pin-compatible with Orin NX 16GB for product line scaling
- Flexible Power: 10W to 40W configurable power
Technical Specifications
| Specification | Details |
|---|---|
| GPU Architecture | NVIDIA Ampere |
| CUDA Cores | 1024 |
| Tensor Cores | 32 |
| GPU Frequency | 1.173 GHz |
| CPU | 6-core Arm Cortex-A78AE @ 1.7 GHz |
| Memory | 8GB 128-bit LPDDR5 |
| Memory Bandwidth | 102.4 GB/s |
| Storage | External NVMe via M.2 Key M |
| AI Performance | 117 TOPS (Sparse INT8) |
| Power | 10W – 40W (configurable) |
| Connector | 260-pin SO-DIMM |
| Module Size | 69.6 mm × 45 mm |
Ideal Use Cases
- Fleet-scale robot deployments with consistent AI capabilities
- AI-powered smart cameras and intelligent video recorders (NVRs)
- Embedded AI controllers for industrial automation
- Edge inference nodes for distributed AI pipelines
- Portable and battery-powered AI devices
Why Choose This Product?
The Jetson Orin NX 8GB is the go-to module for production deployments where you need strong AI performance at volume-friendly economics. At 117 TOPS, it outperforms many competing edge AI platforms while maintaining a compact form factor and low power consumption. Its pin-compatibility with the Orin NX 16GB lets you offer tiered product lines from a single hardware design.
Interested? Contact us for volume pricing, carrier board options, and deployment planning support.
