Overview

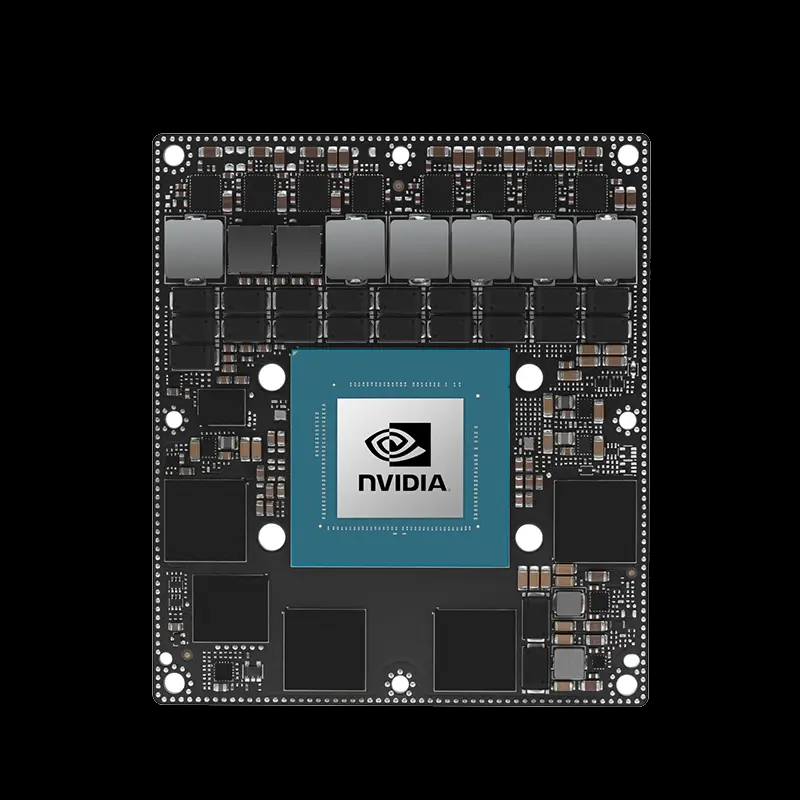

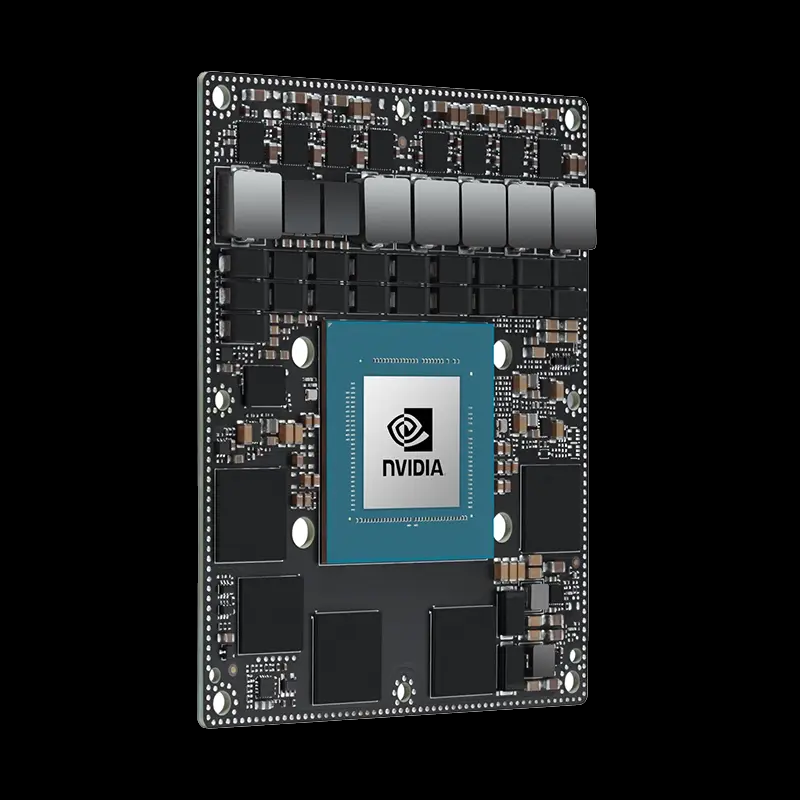

The NVIDIA Jetson AGX Orin Industrial takes the AGX Orin 64GB architecture and hardens it for environments where standard modules cannot survive. It delivers up to 248 TOPS of AI performance from a 2,048-core NVIDIA Ampere GPU with 64 Tensor Cores and two NVDLA v2 engines, backed by a 12-core Arm Cortex-A78AE CPU and 64GB of LPDDR5 memory with error correction.
Rated for -40 to +85 degrees Celsius, high shock and vibration and a 10-year operating life, the industrial module keeps the same 699-pin form factor and software stack as the commercial AGX Orin. Applications that run on JetPack today can move to the industrial part without redesigning the carrier or the software.
Key Features
- 248 TOPS: Ampere GPU with 2,048 CUDA cores, 64 Tensor Cores and 2x NVDLA v2
- 12-core Cortex-A78AE CPU: Automotive-grade Arm cores with lockstep support for functional safety designs
- 64GB LPDDR5 with ECC: 256-bit interface at 204.8 GB/s, plus 64GB eMMC 5.1 on the module
- Extended temperature: Operating range of -40 to +85 degrees Celsius
- Shock and vibration: Qualified for industrial, rail and heavy-machinery mounting
- 10-year operating life: Long product availability for regulated and long-lifecycle deployments
- 15W to 75W: Configurable power modes in the standard AGX Orin form factor
Technical Specifications
| Specification | Details |
|---|---|
| AI Performance | 248 TOPS (INT8, sparse) |
| GPU | 2,048-core NVIDIA Ampere GPU, 64 Tensor Cores |
| DL Accelerator | 2x NVDLA v2 |
| Vision Accelerator | PVA v2 |
| CPU | 12-core Arm Cortex-A78AE v8.2 (64-bit), 3MB L2 + 6MB L3 |
| Memory | 64GB 256-bit LPDDR5 with ECC, 204.8 GB/s |
| Storage | 64GB eMMC 5.1 |
| Video Encode | 2x 4K60, 4x 4K30, 8x 1080p60 (H.265) |
| Video Decode | 1x 8K30, 3x 4K60, 7x 4K30, 11x 1080p60 (H.265) |
| Camera | Up to 6 cameras (16 via virtual channels), 16 lanes MIPI CSI-2 |
| PCIe | 22 lanes PCIe Gen4 |
| Networking | 1x GbE, 4x 10GbE |
| Display | 1x 8K60 multi-mode DP 1.4a / eDP 1.4a / HDMI 2.1 |
| Operating Temperature | -40 to +85 degrees Celsius |
| Power | 15W to 75W |

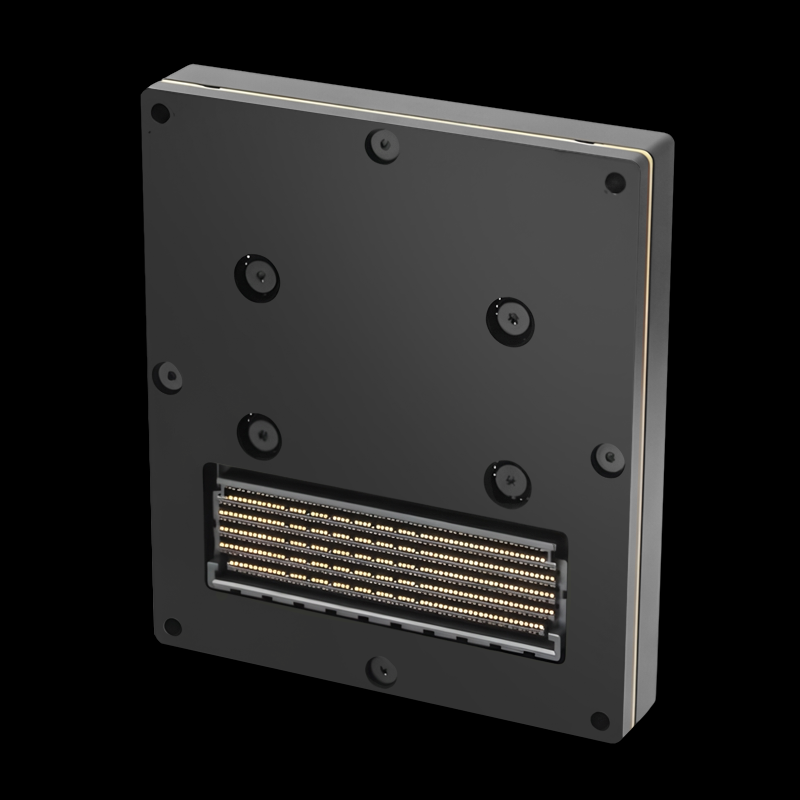

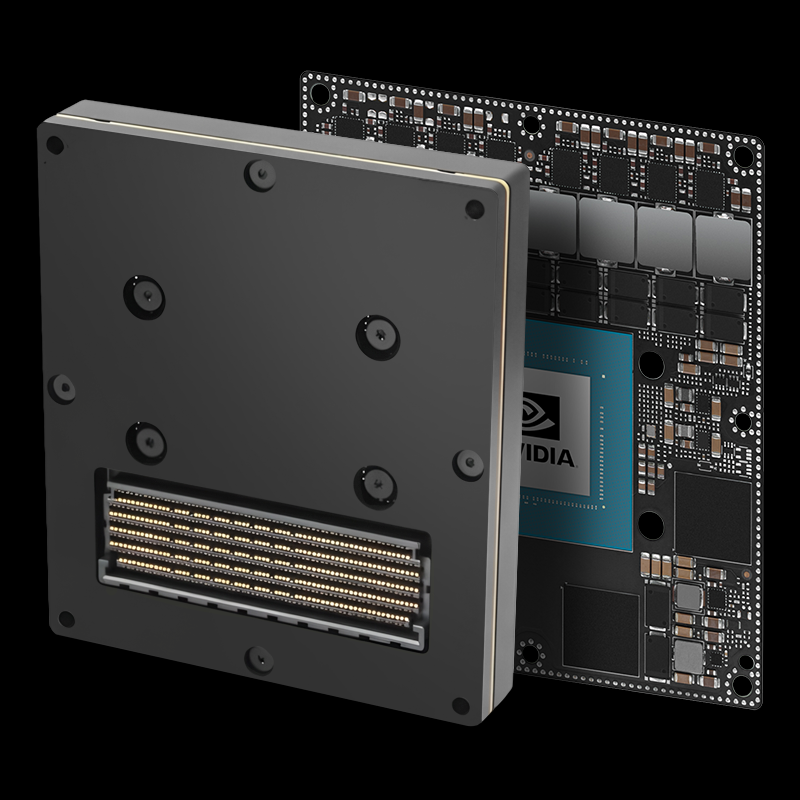

| Form Factor | 100 mm x 87 mm, 699-pin connector, integrated thermal transfer plate |
Ideal Use Cases
- Rail, mining and heavy-machinery autonomy
- Outdoor robotics and agricultural equipment
- Industrial inspection and factory automation
- Aerospace and defense edge computing
- Medical and regulated devices with long lifecycles
Why Choose This Product?
Jetson AGX Orin Industrial is the only way to get full AGX Orin performance in a module qualified for extreme temperature, shock and vibration with a 10-year lifecycle. It protects your software investment while meeting the environmental requirements of industrial and rail projects.
Interested? Contact us for pricing, volume orders and deployment support.
